Yaw Rate & G Sensor

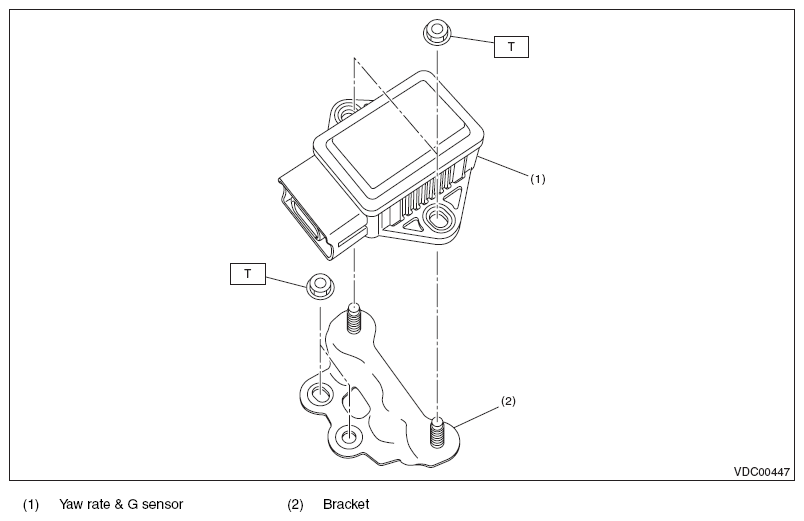

Fig 1: Identifying Yaw Rate, G Sensor And Bracket
G08542303Courtesy of SUBARU

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
