Abs Wheel Speed Sensor

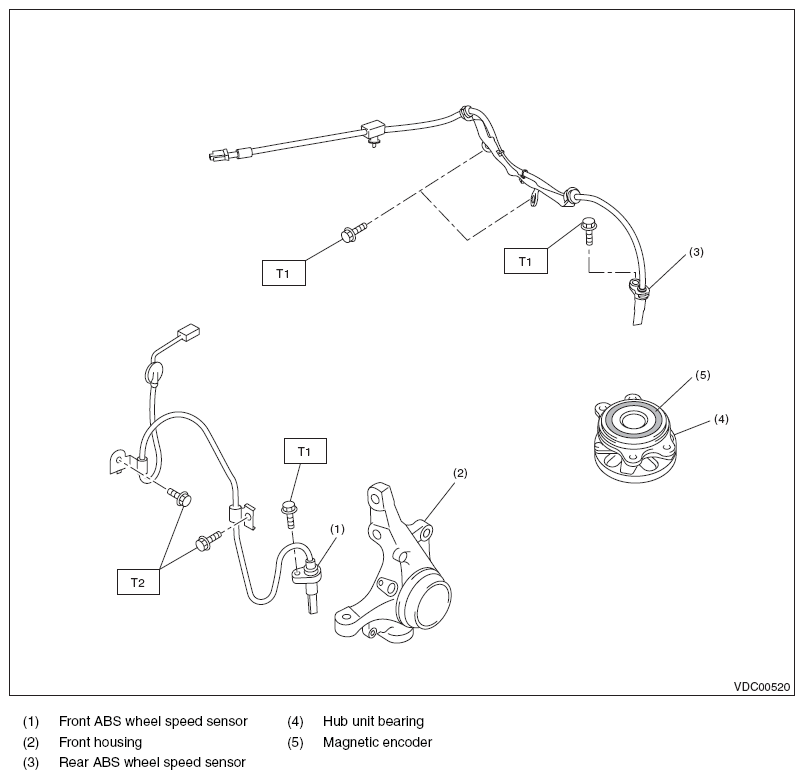

Fig 1: Identifying ABS Wheel Speed Sensor And Related Components
G08542302Courtesy of SUBARU

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 33 (3.36, 24.3)
