Front ABS Wheel Speed Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Disconnect the ABS wheel speed sensor connector located next to the front strut mounting house in the engine compartment.
  3. Remove the bolts and then remove the sensor harness bracket.

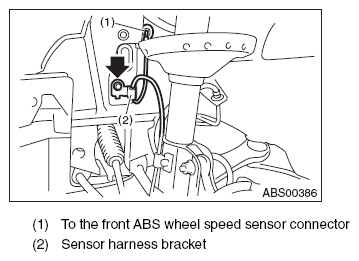

    Fig 1: Identifying Front ABS Wheel Speed Sensor Connector And Sensor Harness Bracket
    G08542333Courtesy of SUBARU
  4. Remove the bolts which secure the sensor harness to the front strut.
  5. Remove the bolts, and remove the front ABS wheel speed sensor from the front housing.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness.
    Fig 2: Locating Sensor Harness Housing
    G05957084Courtesy of SUBARU
