Control Module I/O Signal: Wiring Diagram

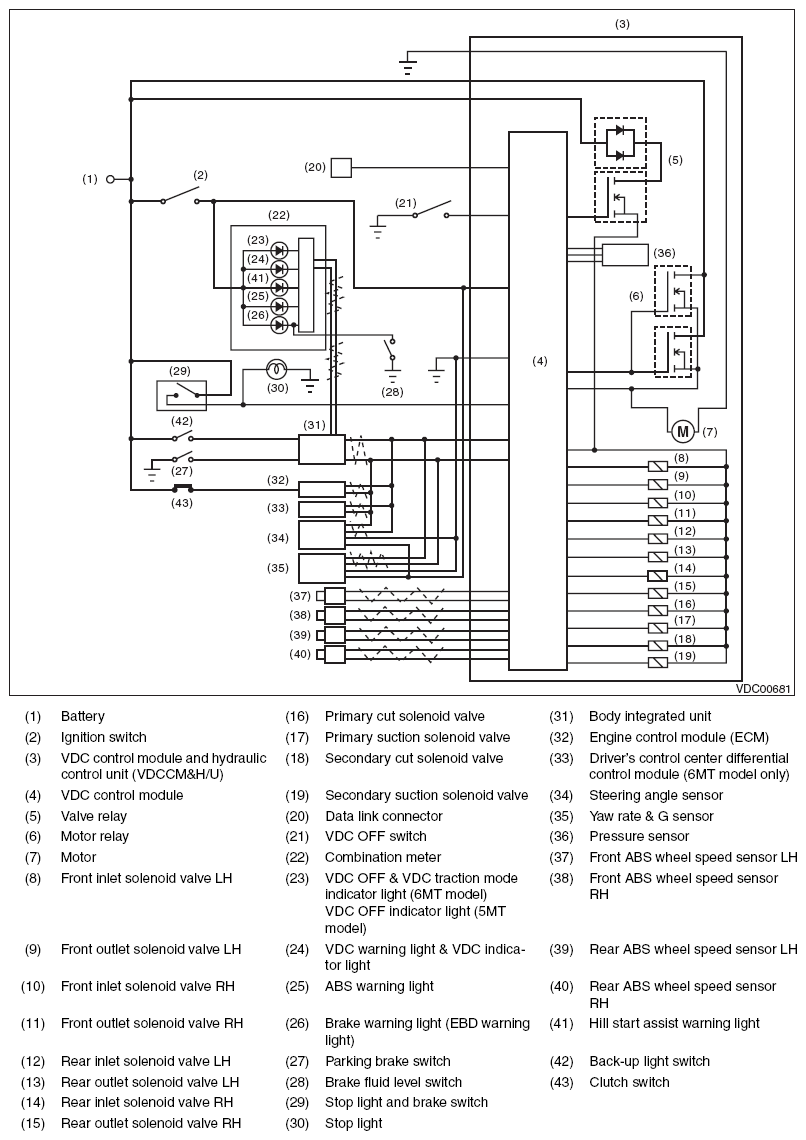

Fig 1: VDC Control Module Wiring Diagram

G08542351

Courtesy of SUBARU OF AMERICA, INC.
