Throttle Body: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover. < Refer to REMOVAL , Front Under Cover. >
Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. < Refer to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Remove the intercooler. < Refer to REMOVAL , Intercooler. >
Disconnect the connectors from the throttle position sensor.

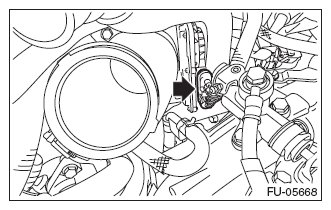

Fig 2: Locating Throttle Position Sensor Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the brake booster vacuum hose from the clip (A), and remove the bolts securing the air bypass pipe to the intake manifold.

Fig 3: Identifying Brake Booster Vacuum Hose Mounting Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts securing the PCV pipe assembly to the intake manifold, and remove the intake duct from the throttle body.

Fig 4: Locating PCV Pipe Assembly To Intake Manifold Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hose from throttle body.

Fig 5: Locating Engine Coolant Hose Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle body from the intake manifold.

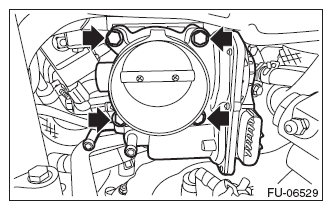

Fig 6: Locating Throttle Body Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
