Select Lever: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. < Ref. to REMOVAL , Center Exhaust Pipe.>
  5. Remove the center exhaust cover.
    Fig 1: Identifying Center Exhaust Cover
    G08550562Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the cable from the arm COMPL.

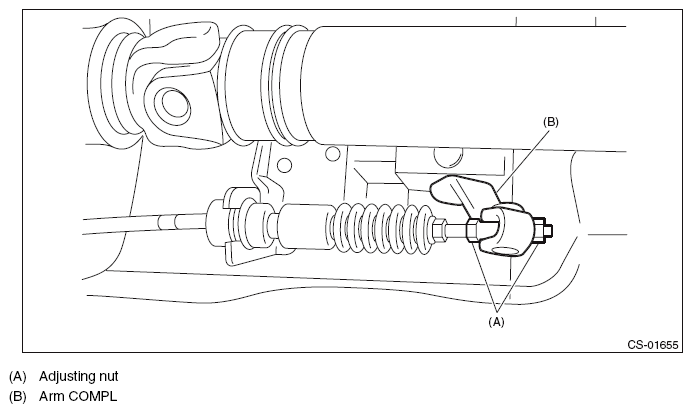

    Fig 2: Identifying Arm COMPL And Adjusting Nut
    G09487563Courtesy of SUBARU OF AMERICA, INC.
  7. Raise the claw of clamp and remove the cable.

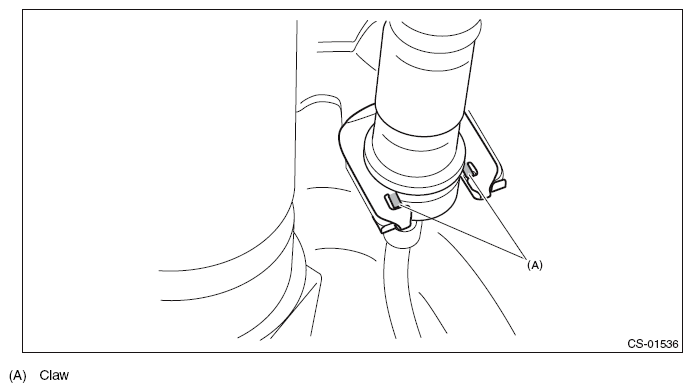

    Fig 3: Identifying Selector Lever Clamp Claw
    G09487564Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Shift the select lever to "N" range.
  10. Lower the cover grip AT vertically toward the lever.
    Fig 4: Lowering Selector Lever Cover Grip AT
    G08317526Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the clamp grip pin.
    Fig 5: Removing Selector Lever Clamp Grip Pin
    G08317527Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the grip assembly.
    Fig 6: Removing Selector Lever Grip Assembly
    G08317528Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the console box. < Ref. to REMOVAL , Console Box.>
  14. Remove the cover - shift lever.
    Fig 7: Identifying Select Lever Assembly
    G08317529Courtesy of SUBARU OF AMERICA, INC.
  15. Disconnect the connector, and remove the indicator cover from the housing.
    Fig 8: Identifying Selector Lever Indicator Cover
    G08317530Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the housing with the blind A and blind B.
    Fig 9: Identifying Selector Lever Assembly
    G08317531Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the blind B.

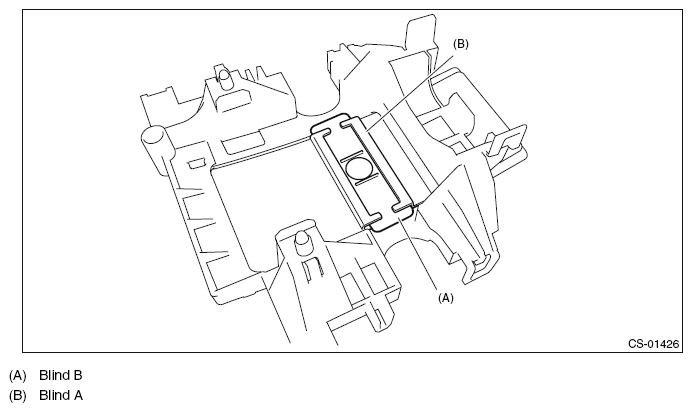

    Fig 10: Identifying Selector Lever Assembly Blind A And B
    G09487571Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the blind A from the housing.
    Fig 11: Identifying Select Lever Housing Blind A
    G08317533Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the panel center LWR LH and RH. < Ref. to REMOVAL , Console Box.>
  20. Remove the harness clip from the select lever assembly.
    Fig 12: Locating Select Lever Assembly Harness Clip
    G08550573Courtesy of SUBARU OF AMERICA, INC.
  21. Disconnect the harness connector.
    Fig 13: Identifying Select Lever Harness Connector
    G08550574Courtesy of SUBARU OF AMERICA, INC.
  22. Remove the four bolts to remove the select lever assembly.
    Fig 14: Locating Select Lever Assembly Mounting Bolt
    G08550575Courtesy of SUBARU OF AMERICA, INC.
