Identification Number & Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

• Positioning of the label for identification

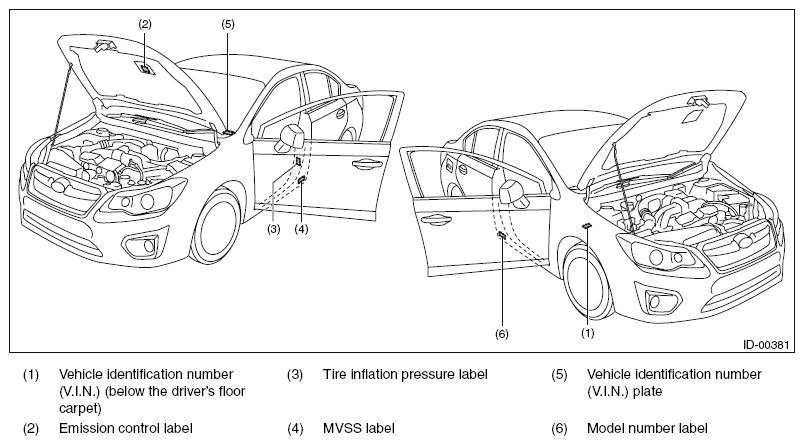

  Fig 1: Identifying Identification Number & Label Locations

  Courtesy of SUBARU OF AMERICA, INC.
• Engine

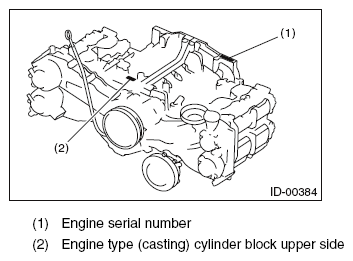

  Fig 2: Identifying Engine Serial Number

  Courtesy of SUBARU OF AMERICA, INC.
• Manual transmission

  5MT

  Fig 3: Identifying MT Type And Transmission Serial Number

  Courtesy of SUBARU OF AMERICA, INC.
• Automatic transmission

  CVT

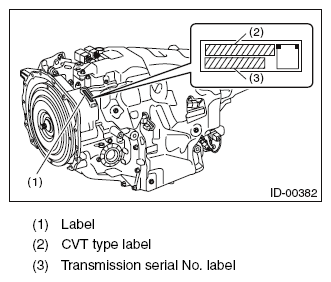

  Fig 4: Identifying Automatic Transmission Label (CVT)

  Courtesy of SUBARU OF AMERICA, INC.
• Rear differential

  T-type

  Fig 5: Identifying Rear Differential Identification (White Paint, T-Type)

  Courtesy of SUBARU OF AMERICA, INC.

  VA1-type

  Fig 6: Identifying Rear Differential Label (VA1-Type)

  Courtesy of SUBARU OF AMERICA, INC.
• MVSS label (except for XV model)
  Fig 7: Identifying MVSS Label (Except For XV Model)

  Courtesy of SUBARU OF AMERICA, INC.
• MVSS label (XV model)
  Fig 8: Identifying MVSS Label (XV Model)

  Courtesy of SUBARU OF AMERICA, INC.
• Model number label
  Fig 9: Identifying Model Number Label

  Courtesy of SUBARU OF AMERICA, INC.
