Engine Control Module (ECM): Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box. < Ref. to REMOVAL , Glove Box.>

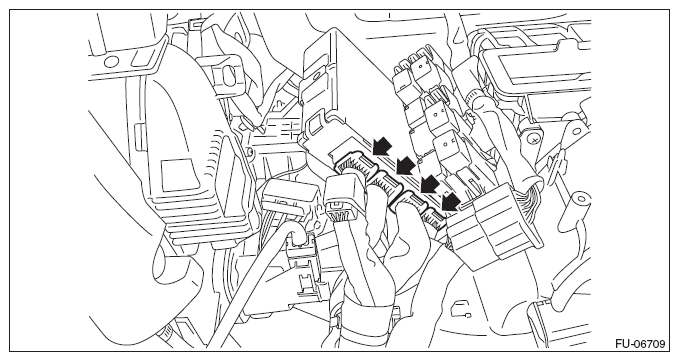

Disconnect the connector from ECM.

Fig 2: Locating Connector From ECM
Courtesy of SUBARU OF AMERICA, INC.

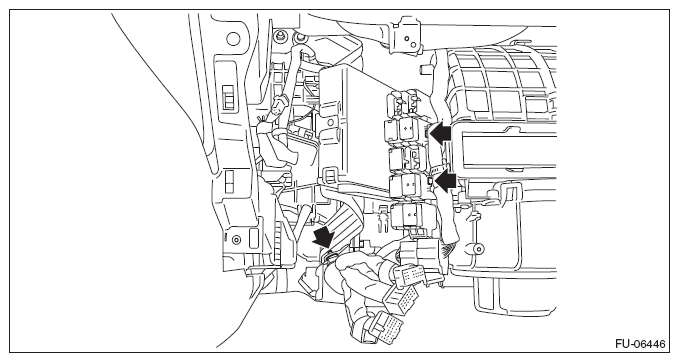

Remove the harness clip, and push the tabs to remove the relay block.

Fig 3: Pushing Relay Block Tabs
Courtesy of SUBARU OF AMERICA, INC.

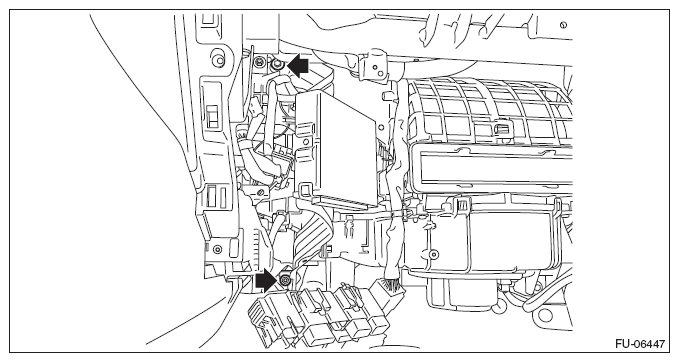

Remove the bolts and nuts, and remove the ECM.

Fig 4: Locating ECM Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
