Outer Mirror Assembly: Disassembly

CAUTION:

When removing the mirror - repair, be careful not to damage the back surface of mirror - repair with a flat tip screwdriver.
When installing the mirror - repair, insert the connector and clip securely.

Operate the remote control mirror switch to face the mirror - repair upward.
Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Note.>
NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
Remove the mirror - repair.
1. Using a flat tip screwdriver, release the clip, and slide the mirror - repair downward to remove.

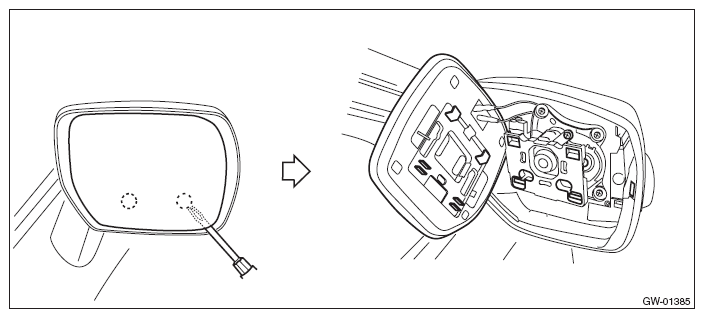

  Fig 1: Removing Mirror Using Screwdriver
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the mirror heater connector. (Model with mirror heater)

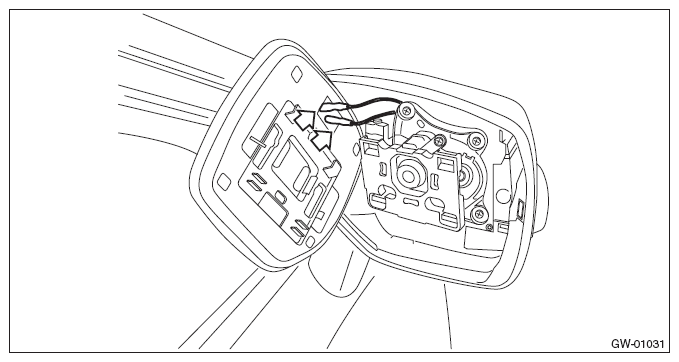

  Fig 2: Locating Mirror Heater Connector
  Courtesy of SUBARU OF AMERICA, INC.
Release the claws, and then remove the cover - cap outer mirror lower.

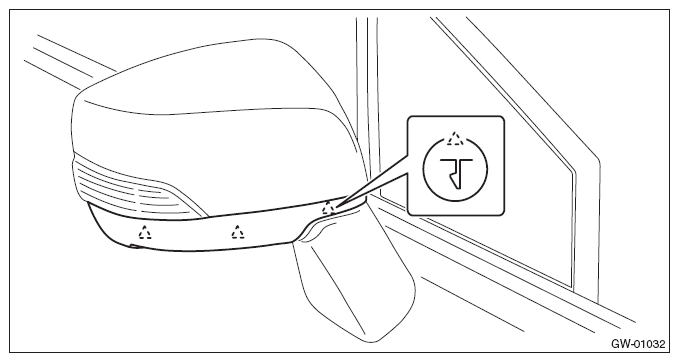

Fig 3: Identifying Cover - Cap Outer Mirror Claws (Lower)
Courtesy of SUBARU OF AMERICA, INC.
Release the claws, and then remove the cover - cap outer mirror.

CAUTION: Be careful not to apply excessive force when removing the cover - cap outer mirror, as the lower hooks may become damaged.

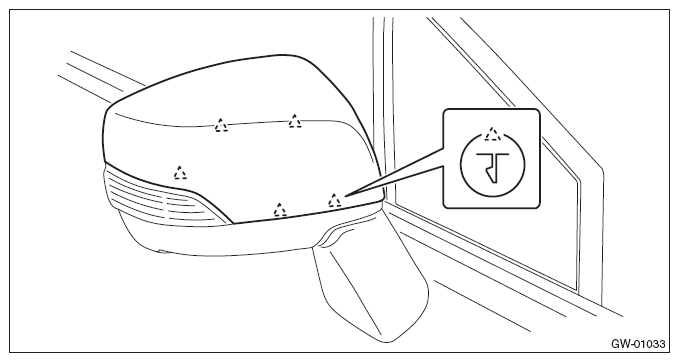

Fig 4: Identifying Cover - Cap Outer Mirror Claws
