Fuel Tank Protector: Removal

  1. Lift up the vehicle.
  2. Remove the bolt and nuts and remove the fuel tank protector.

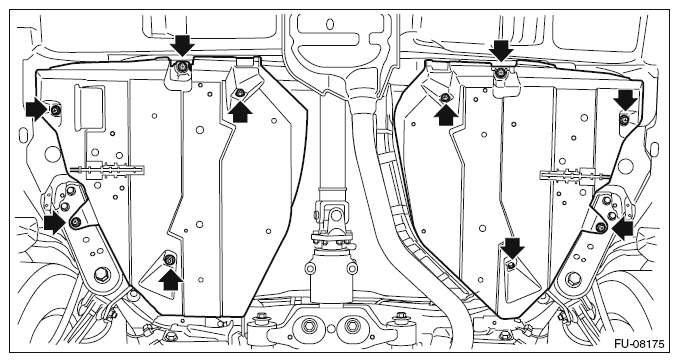

    Fig 1: Locating Fuel Tank Protector Bolt And Nuts
    G09477091Courtesy of SUBARU OF AMERICA, INC.
