Outer Mirror Assembly: Removal

Refer to "DISASSEMBLY" for removal procedures of scalp cap and mirror face. < Ref. to DISASSEMBLY , Outer Mirror Assembly.>

1. Remove the trim panel - front door. < Ref. to FRONT DOOR , REMOVAL, Door Trim.>
2. Remove the outer mirror assembly.
   1. Remove the connector clip that is installed on the panel assembly - front door, and disconnect the connector.
   2. Turn over the sealing cover - front door.
   3. Remove the bolts to remove outer mirror assembly.

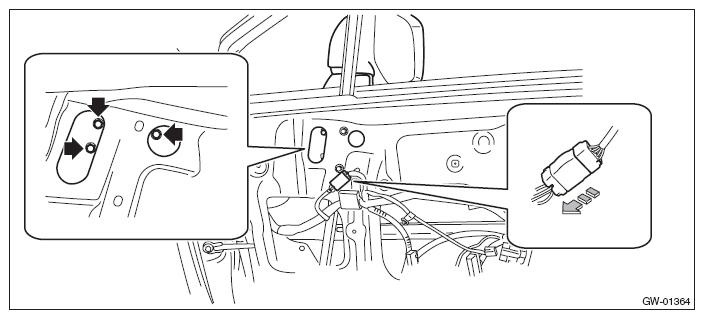

      Fig 1: Locating Outer Mirror Assembly Mounting Bolts

      Courtesy of SUBARU OF AMERICA, INC.
