Roll Connector Unit Connector End View

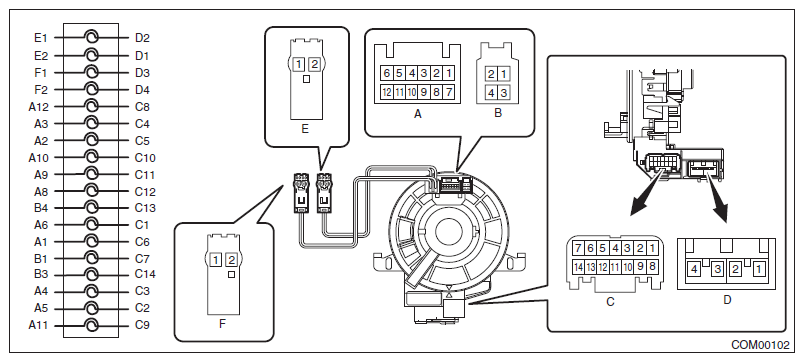

Fig 1: Roll Connector Unit Connector End View

G08319109

Courtesy of SUBARU OF AMERICA, INC.
