Fixed Glass

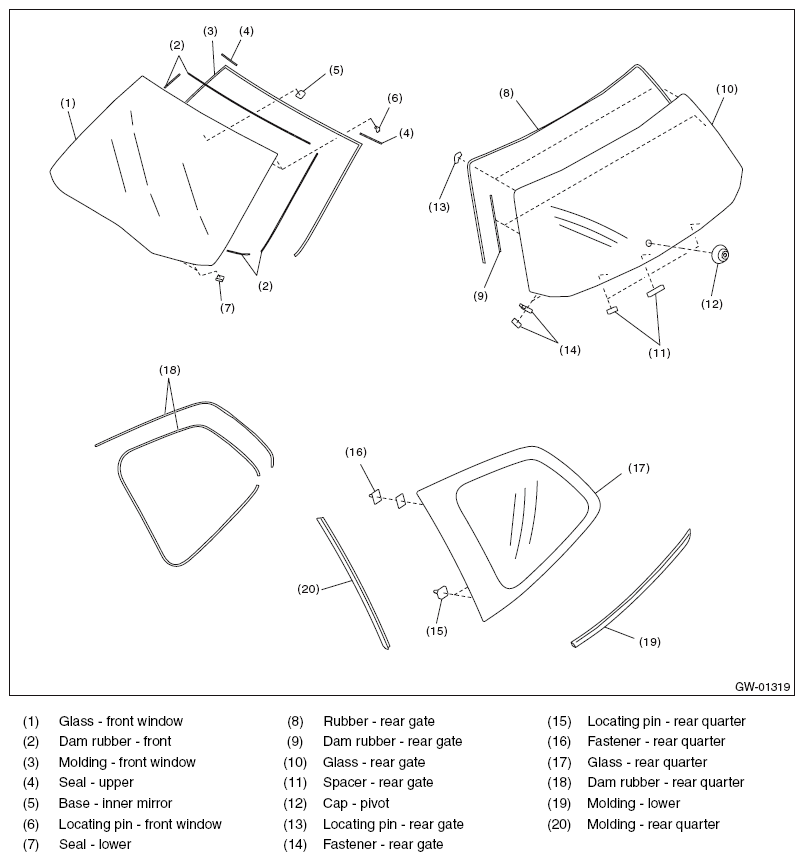

Fig 1: Identifying Glass, Window, Mirrors Components (Fixed Glass)

G09484425

Courtesy of SUBARU OF AMERICA, INC.
