Engine Control System (Diagnostics) (H4DOTC): Electrical Component Location: Location: Sensor

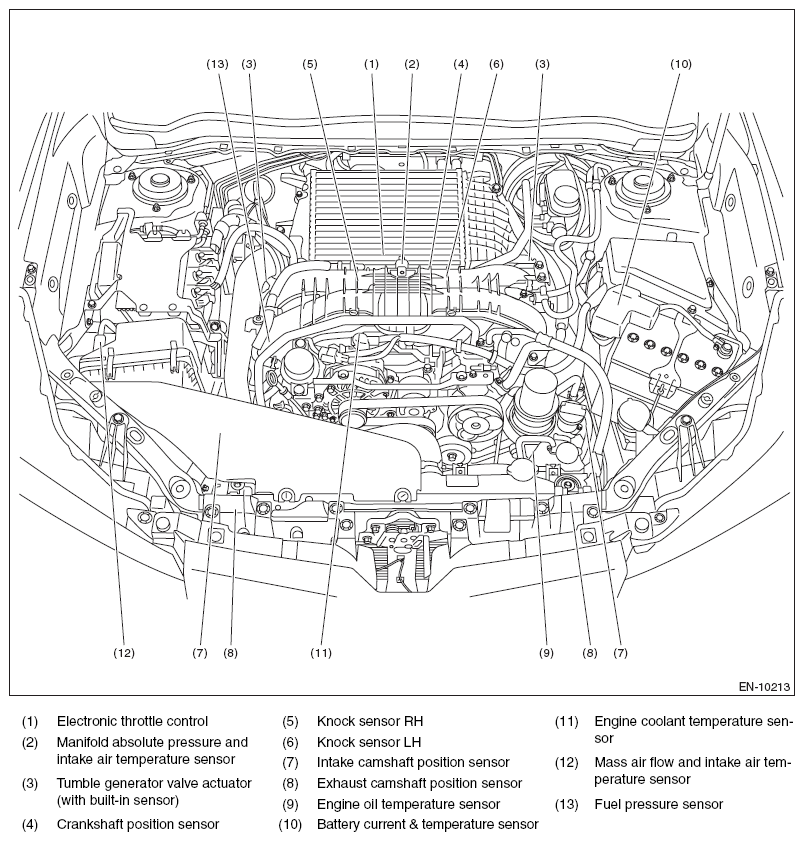

Fig 1: Identifying Electrical Sensor Component (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

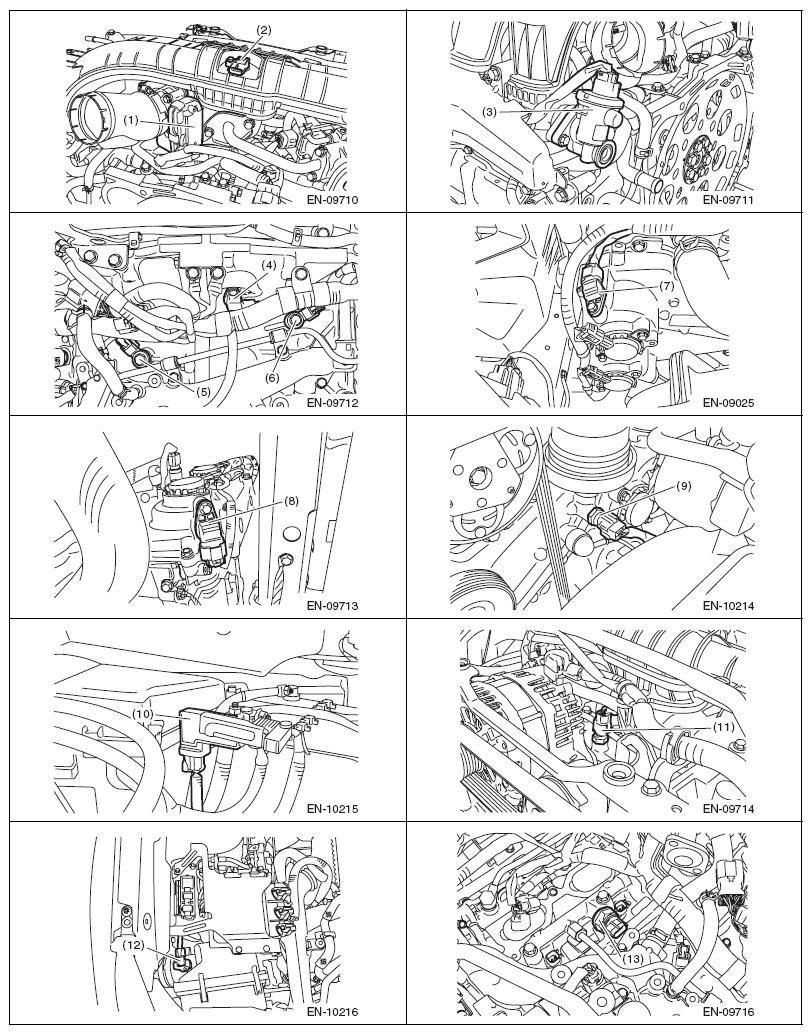

Fig 2: Identifying Electrical Sensor Component (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

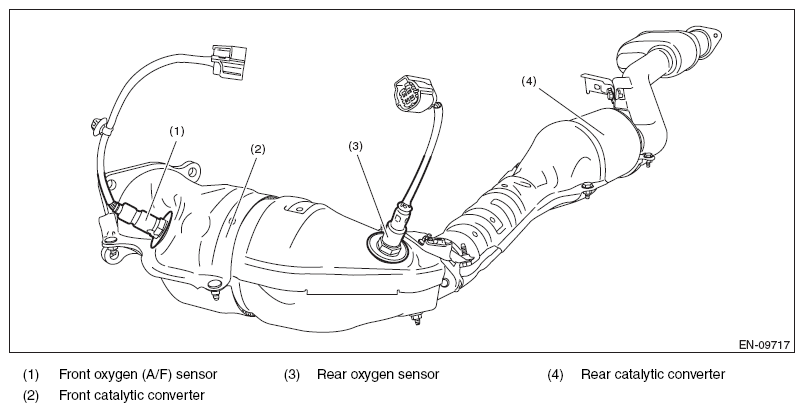

Fig 3: Identifying Front Oxygen (A/F, Rear Oxygen Sensor And Rear Catalytic And Front Catalytic Converter

Courtesy of SUBARU OF AMERICA, INC.

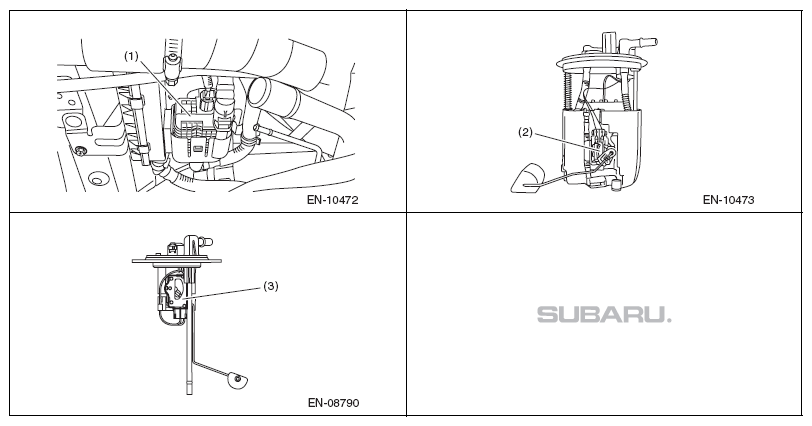

Fig 4: Identifying Leak Check Valve Assy, Fuel Level Sensor, Fuel Sub Level Sensor (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

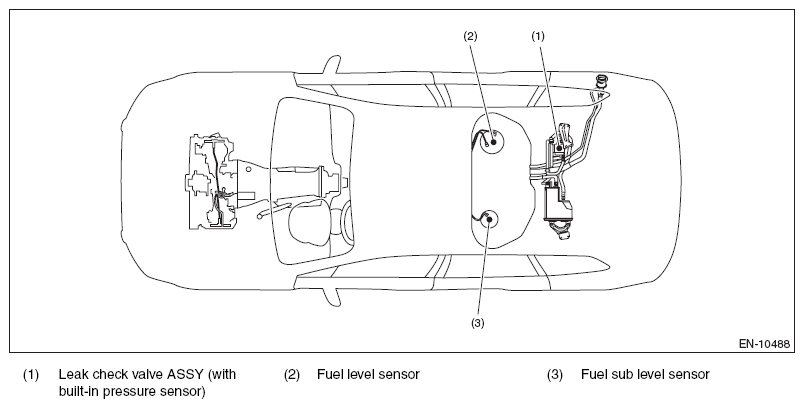

Fig 5: Identifying Leak Check Valve Assy, Fuel Level Sensor, Fuel Sub Level Sensor (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
