Diagnostic procedure

  1. Drive according to the drive pattern described below.

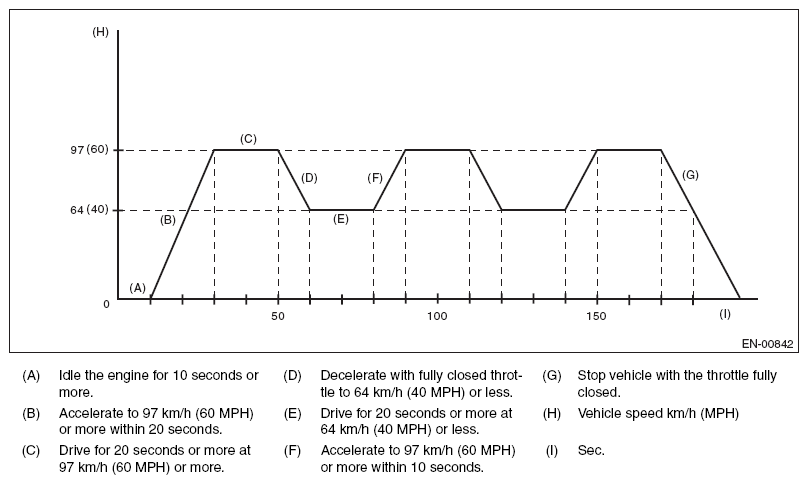

    Fig 1: Drive Cycle C Pattern
    G09480871Courtesy of SUBARU OF AMERICA, INC.
  2. Read the temporary code using the Subaru Select Monitor or general scan tool. < Ref. to OPERATION , Read Diagnostic Trouble Code (DTC). >
