RH Side

  1. Disconnect the ground cable from battery.
  2. Remove the engine control module (ECM). < Ref. to REMOVAL , Engine Control Module (ECM). >
  3. Disconnect the connector from ignition coil.
  4. Remove the ignition coil.

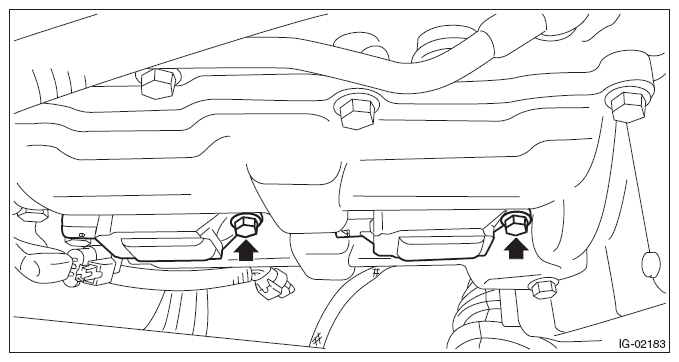

    Fig 1: Locating Ignition Coil Mounting Bolts (RH Side)
    G09480832Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spark plug with a spark plug socket.
