Fuel Filler Pipe
Fuel Filler Pipe

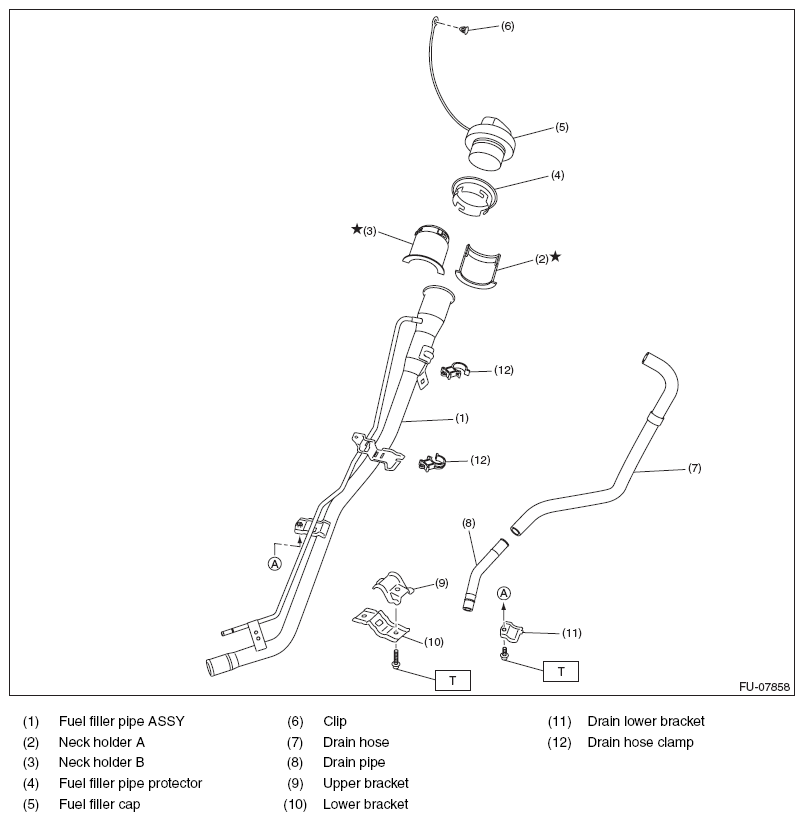

Fig 1: Fuel Filler Pipe Components Location
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
