Fuel Pump Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Remove the fuel pump relay.

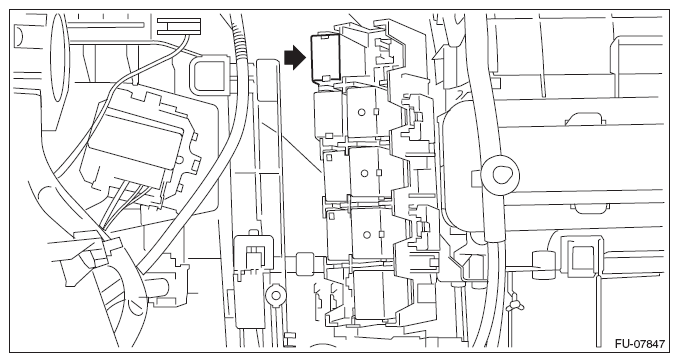

    Fig 1: Locating Fuel Pump Relay
    G09479803Courtesy of SUBARU OF AMERICA, INC.
