Using Windshield Glass Knife

  1. Disconnect the ground cable from battery. (Models with wiper deicer)
  2. Remove the trim panel - front pillar UPR. < Ref. to REMOVAL , Upper Inner Trim. >
  3. Remove the cowl panel assembly. < Ref. to REMOVAL , Cowl Panel. >
  4. Disconnect the wiper deicer connector. (Models with wiper deicer)
  5. Remove the stereo camera cover and stereo camera. (Models with EyeSight) < Ref. to REMOVAL , Stereo Camera. >
  6. Remove the molding - front window from the glass - front window, and attach protective tape on the body side of the circumference of the glass - front window.

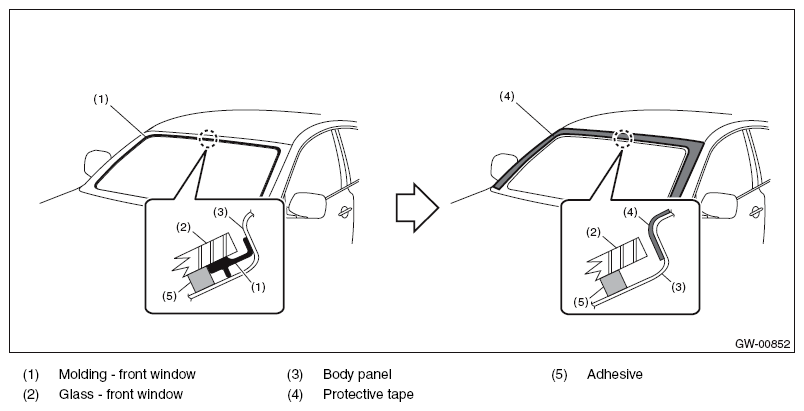

    Fig 1: Identifying Molding, Body Panel, Adhesive, Glass And Protective Tape
    G09484470Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the glass - front window.
    1. Apply sufficient amount of soapy water to the adhesive part and insert the windshield glass knife.
    2. While holding the edges of the knife and the glass - front window at a right angle, move the windshield glass knife parallel to the edge of the glass - front window, and cut the adhesive along the surface and the edge of the glass - front window.
      CAUTION:
      • Cutting of adhesive part should be started from an area with wider gap between the glass - front window and the body.
      • Never twist the windshield glass knife.

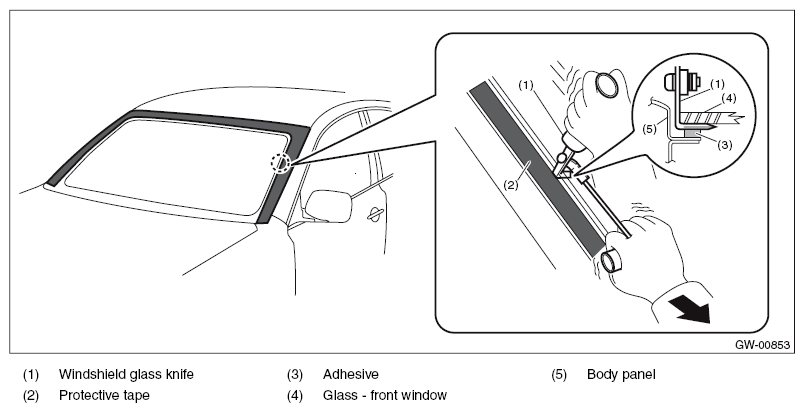

      Fig 2: Removing Front Window Glass
      G09484471Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the locating pin - front window, and remove the glass - front window.
      NOTE: The locating pin - front window are bonded to the corners of the glass - front window. Use piano wire to disconnect the pins.

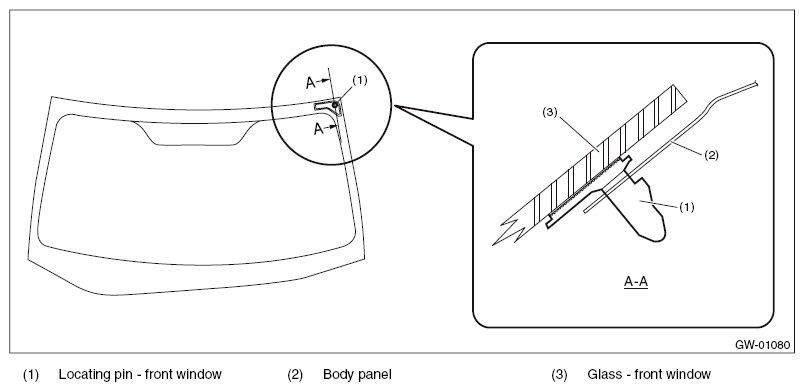

      Fig 3: Identifying Front Window Pin, Body Panel And Front Window Glass
      G09484472Courtesy of SUBARU OF AMERICA, INC.
