Home
>>
Subaru
>>
2014
>>
Forester 2.0XT Premium, 4D Utility
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass/Window/Mirrors
>>
General Description
>>
Components With Torque Specifications
>>
Front Door Glass
Front Door Glass

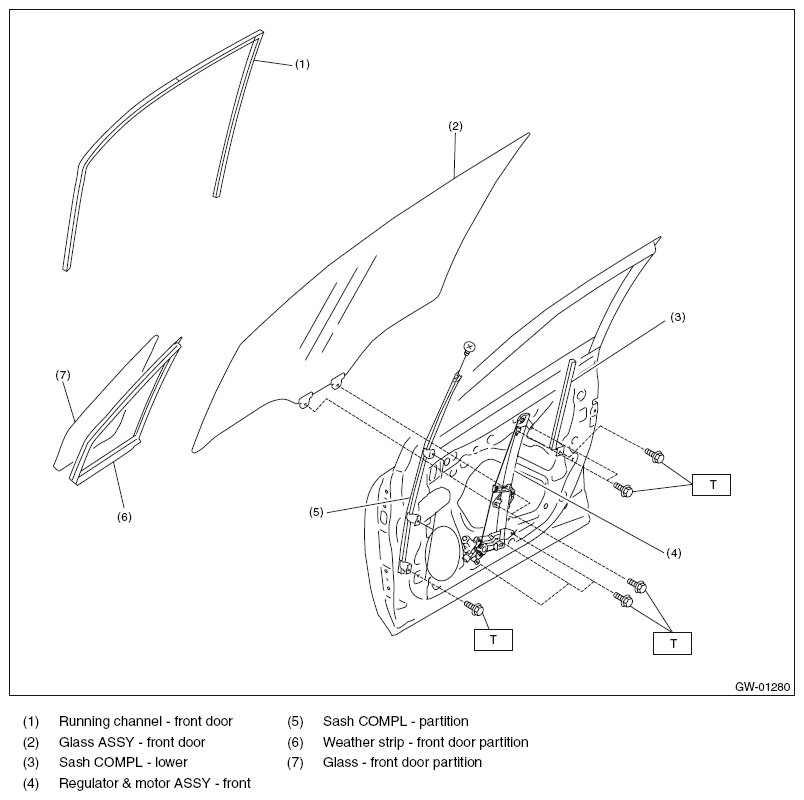

Fig 1: Front Door Glass Components Location
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.76, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
