Components With Torque Specifications

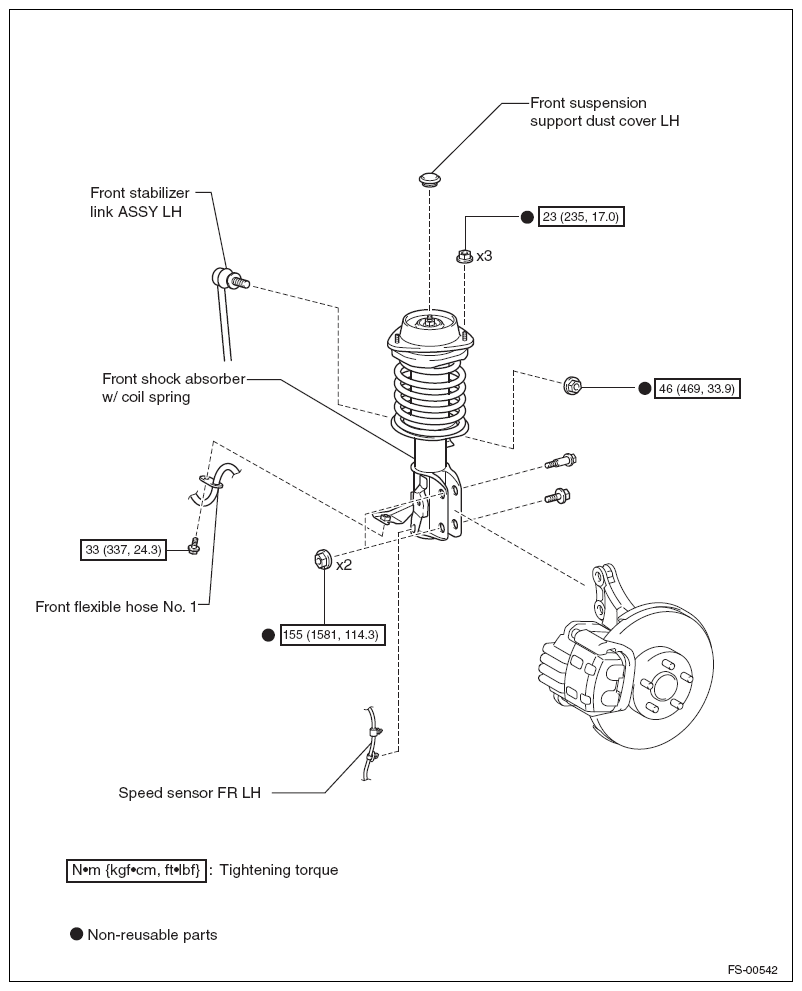

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

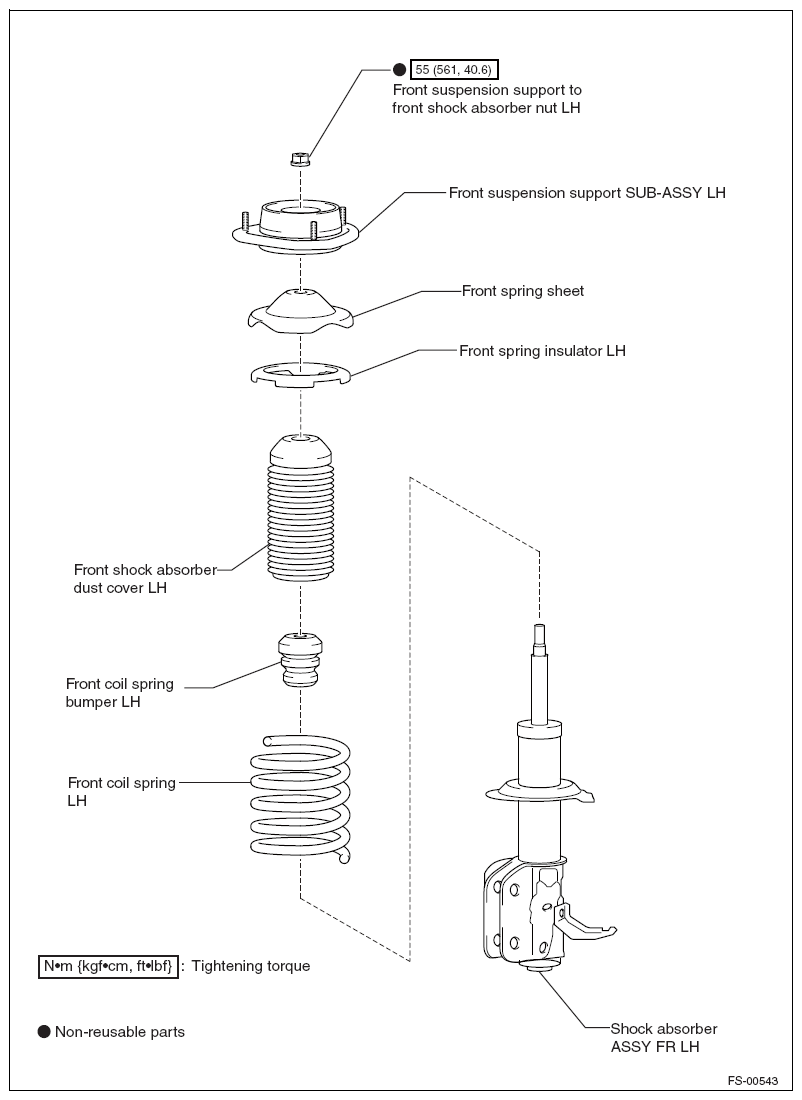

Fig 2: Front Shock Absorber Replacement Components With Torque Specifications (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
