Circuit figure

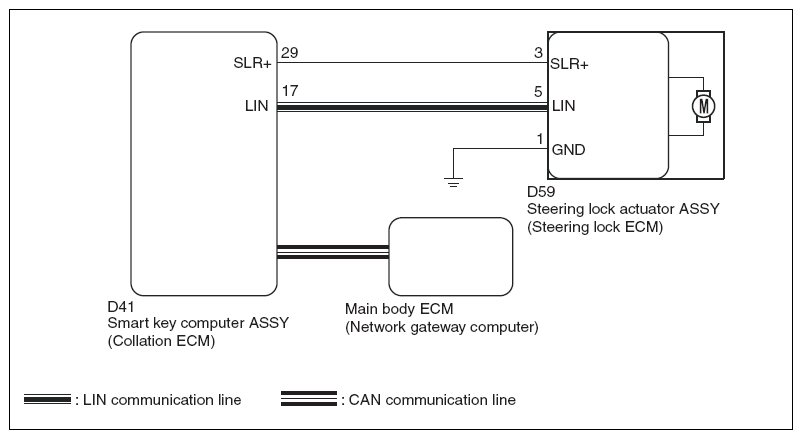

Fig 1: Steering Lock - Circuit Diagram (Without ID Code Box)

G08555394

Courtesy of SUBARU OF AMERICA, INC.
