Circuit figure

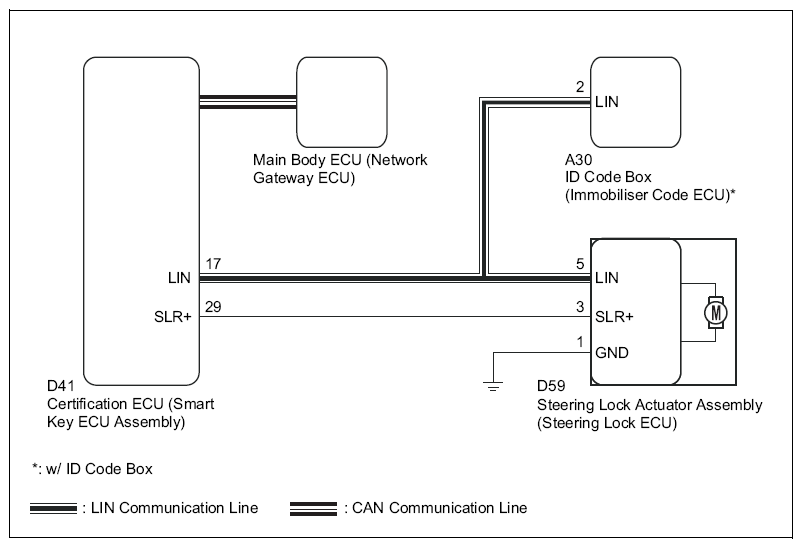

Fig 1: Steering Lock - Circuit Diagram (With ID Code Box)

G08555397

Courtesy of SUBARU OF AMERICA, INC.
