Exploded View
Exploded View

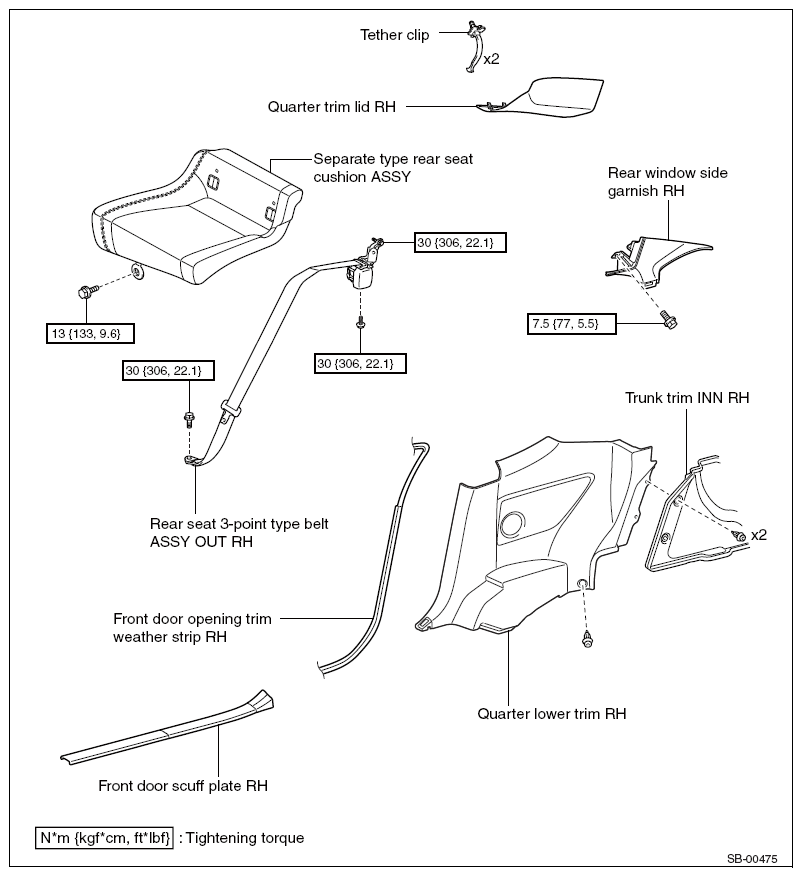

Fig 1: Exploded View Of Rear Seat Outer Belt assembly
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
