Front Seat Inner Belt Assembly: Installation

NOTE: The following procedure is for LH side. Perform the work for the RH side referring to the procedures for the LH side.

Installation of the front seat inner belt assembly LH (driver's side)
1. Install the front seat inner belt assembly LH with the nut and the washer.
  Standard value: T=42N.m {428kgf.cm} {31.0ft.lbf}

  CAUTION: Be careful not to allow the front seat inner belt assembly LH ride over the location.

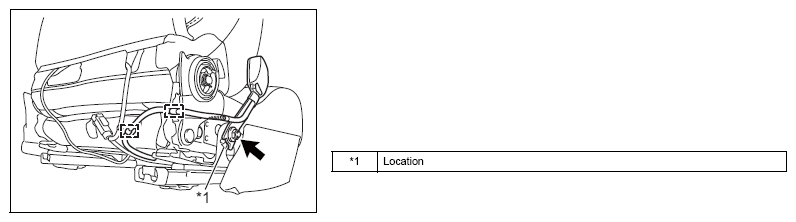

  Fig 1: Identifying Front Seat Inner Belt assembly LH, Nut And Washer
  Courtesy of SUBARU OF AMERICA, INC.
2. Engage the claw and 5 clamps, and install the wiring harness of the front seat inner belt assembly LH.
3. Install the rubber band of the separate type front seat backrest cover LH.
Installation of the front seat inner belt assembly RH (passenger's side)
1. Install the front seat inner belt assembly RH with the nut and the washer.
  Standard value: T=42N.m {428kgf.cm} {31.0ft.lbf}

  CAUTION: Be careful not to allow the front seat inner belt assembly RH ride over the location.

  Fig 2: Identifying Front Seat Inner Belt assembly RH, Nut And Washer
  Courtesy of SUBARU OF AMERICA, INC.
2. Engage the claw and the clamp, and install the wiring harness of the front seat inner belt assembly RH.
Installation of the front seat cushion shield INN LH (driver's side) (Refer to INSTALLATION )
Installation of the front seat assembly LH (Refer to INSTALLATION )
Inspection of the airbag warning light (Refer to AIRBAG WARNING LIGHT ILLUMINATION PATTERN )
