Exploded View

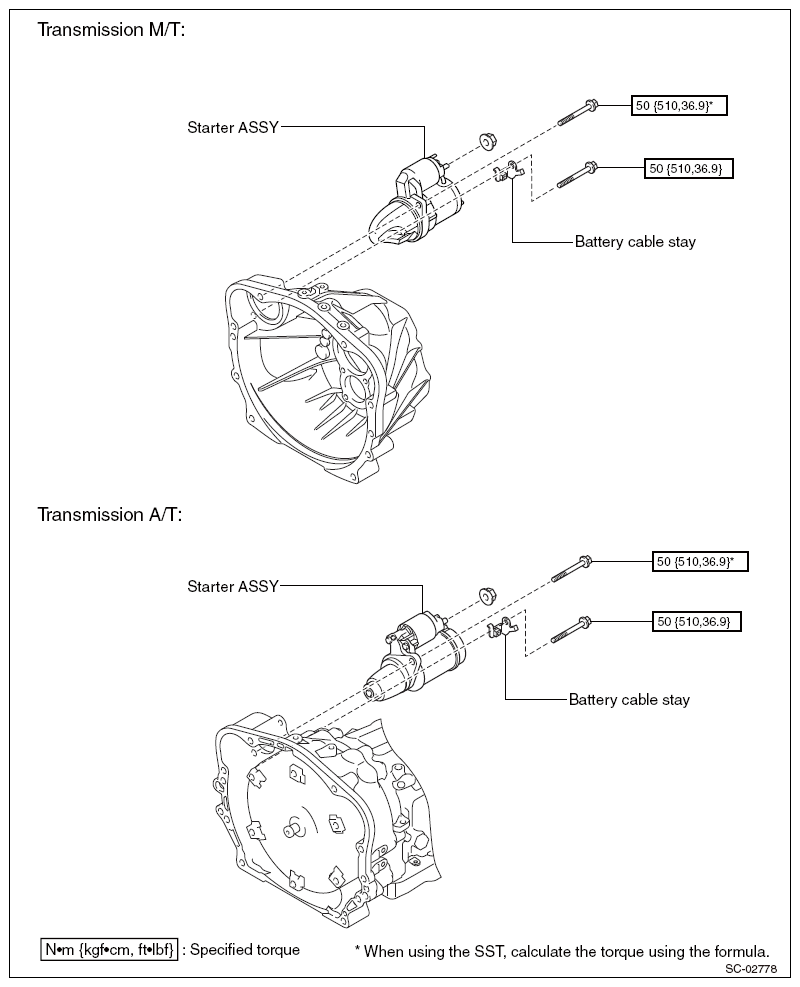

Fig 1: Exploded View Of Starter Assy With Torque Specifications (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

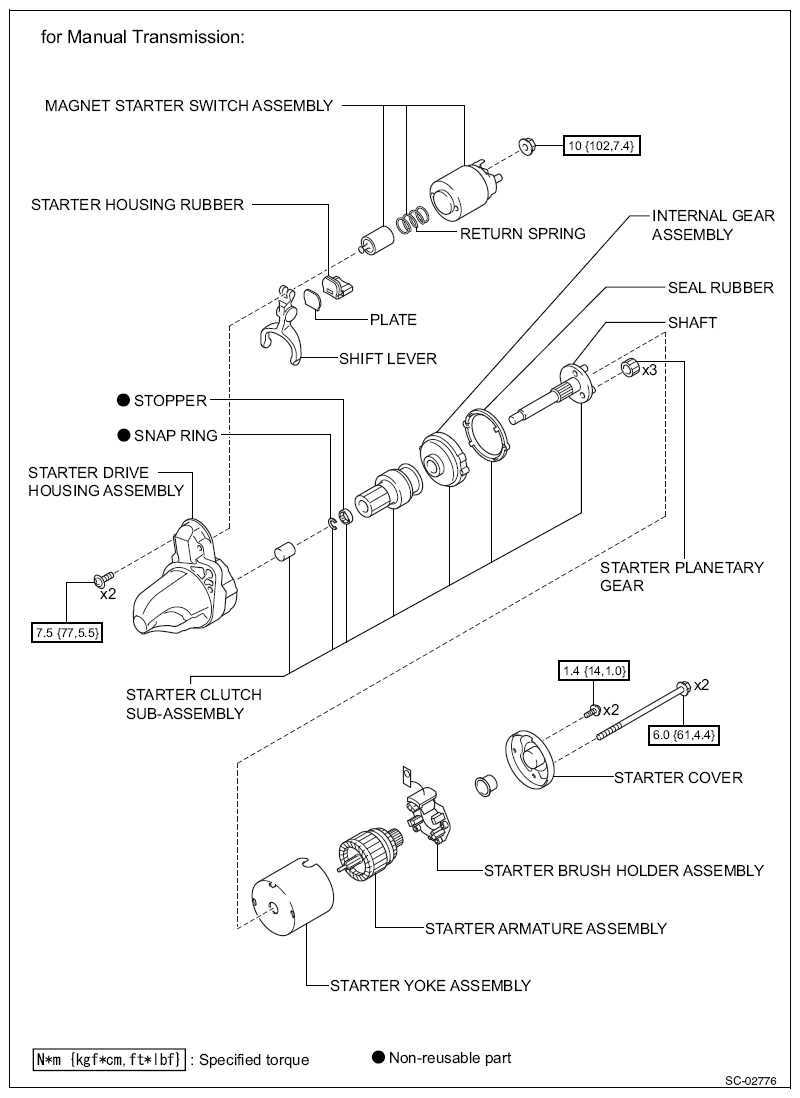

Fig 2: Exploded View Of Starter Assy With Torque Specifications (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

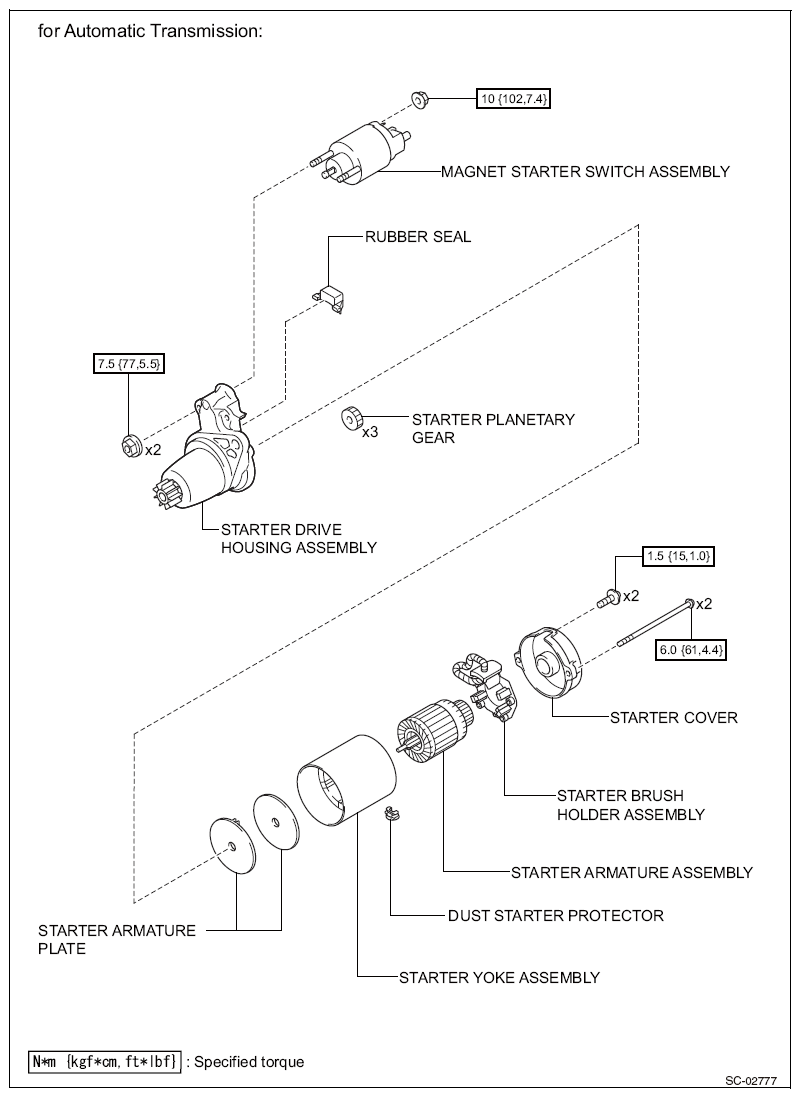

Fig 3: Exploded View Of Starter Assy With Torque Specifications (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
