Power Window Regulator Motor Assembly (Installed To The Front Side)
>>
Exploded View
Exploded View

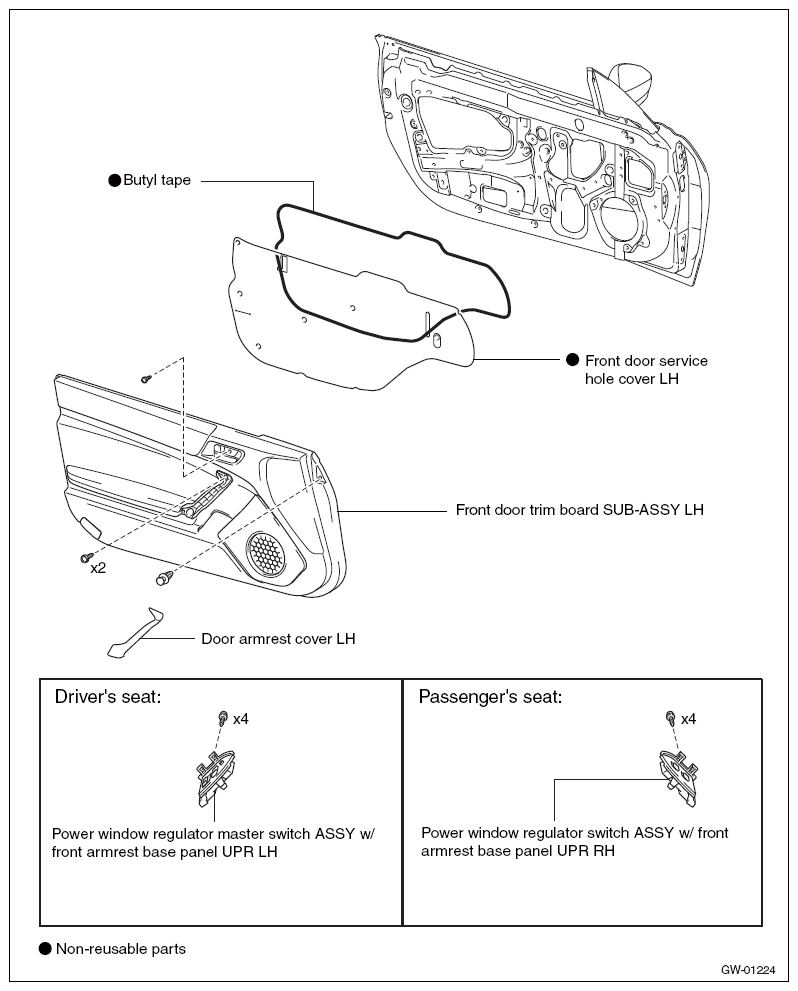

Fig 1: Exploded View Of Power Window Regulator Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Power Window Regulator Motor Assembly With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
