Circuit figure

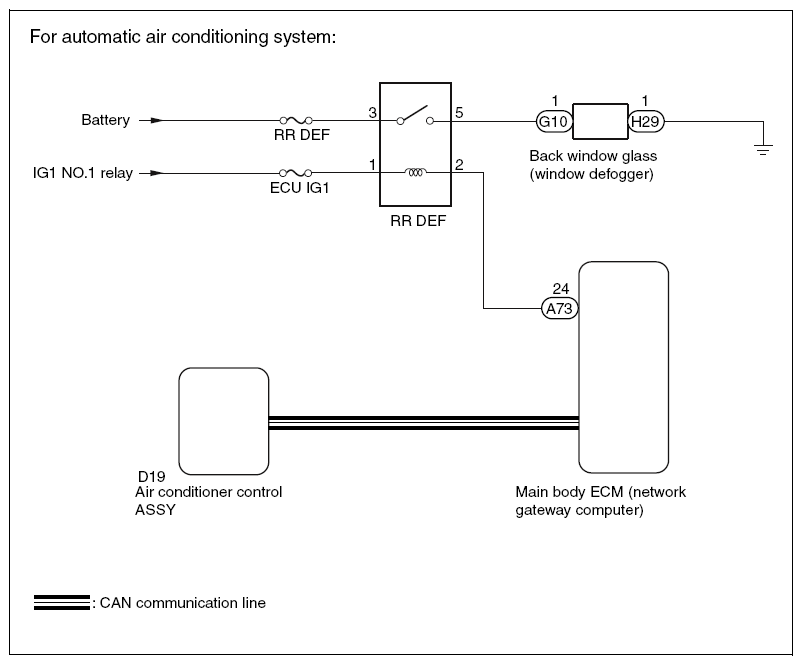

Fig 1: Rear Window Defogger Control - Circuit Diagram (For Automatic Air Conditioning System)
G08555658Courtesy of SUBARU OF AMERICA, INC.

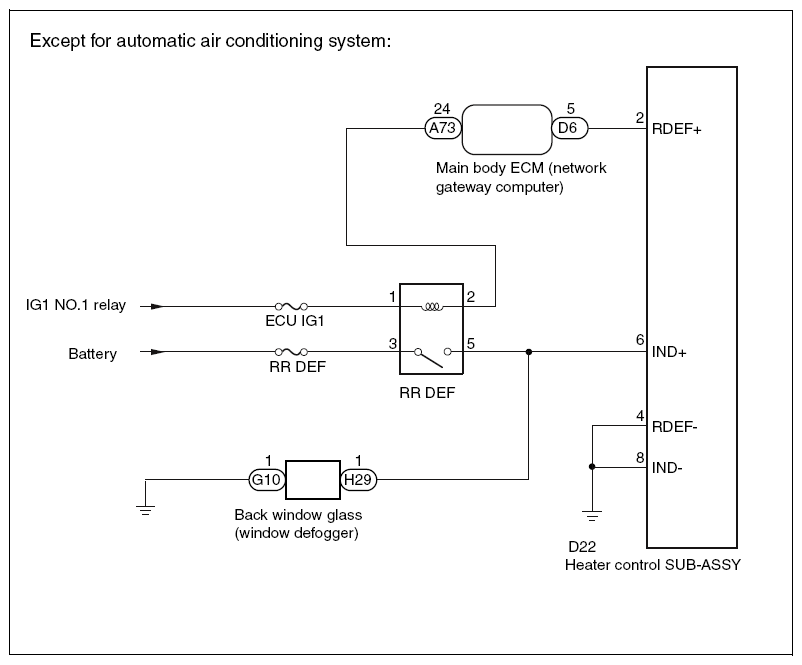

Fig 2: Rear Window Defogger Control - Circuit Diagram (Except For Automatic Air Conditioning System)
G08555659Courtesy of SUBARU OF AMERICA, INC.
