Exploded View
Exploded View

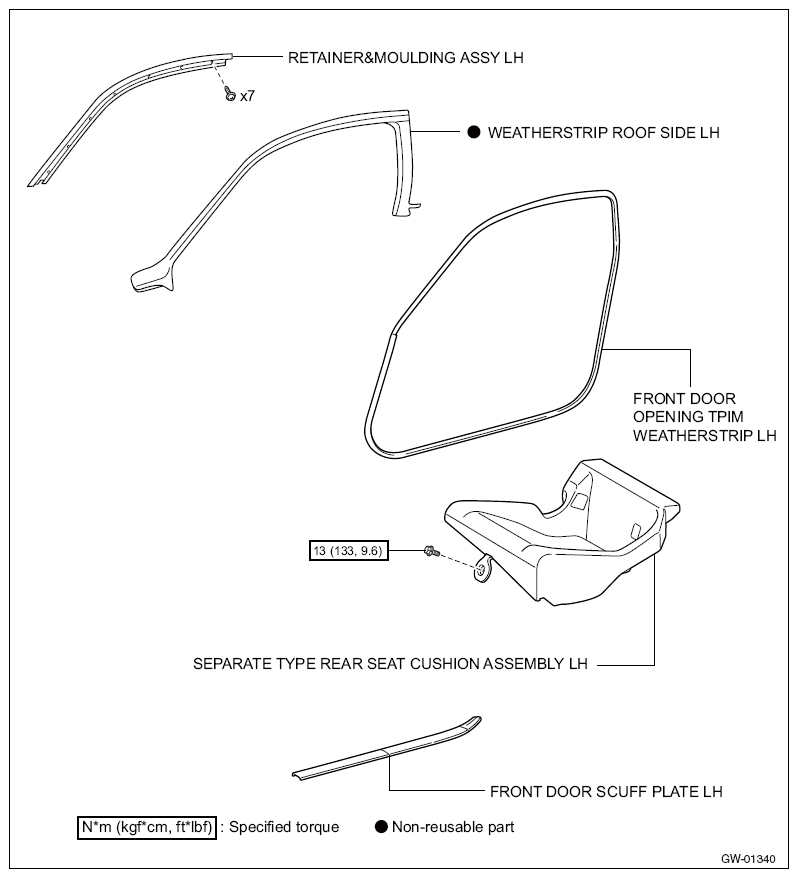

Fig 1: Exploded View Of Quarter Window With Torque Specifications (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

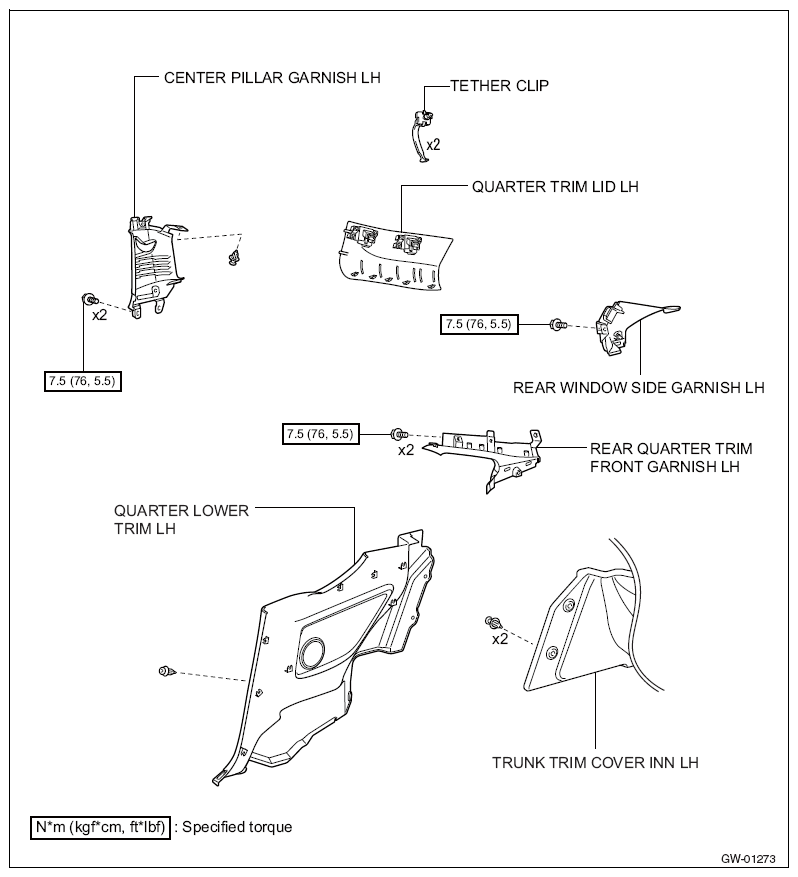

Fig 2: Exploded View Of Quarter Window With Torque Specifications (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Exploded View Of Quarter Window With Torque Specifications (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
