Transmission Valve Body ASSY
>>
Exploded View
Exploded View

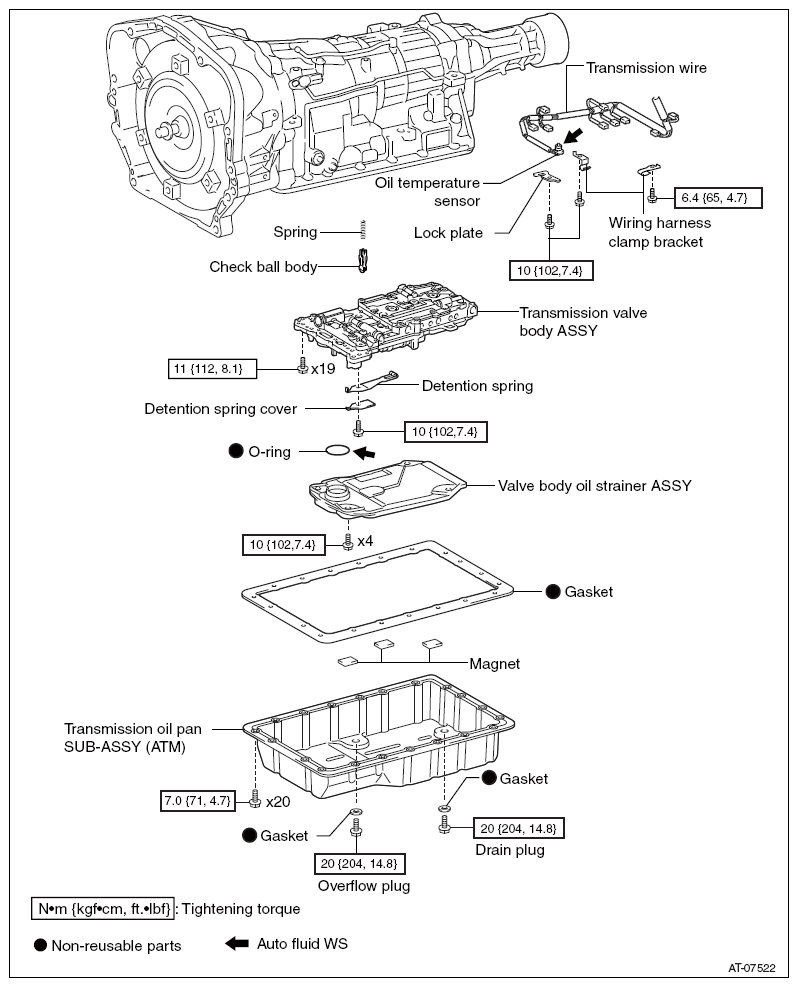

Fig 1: Exploded View Of Transmission Valve Body Assy With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

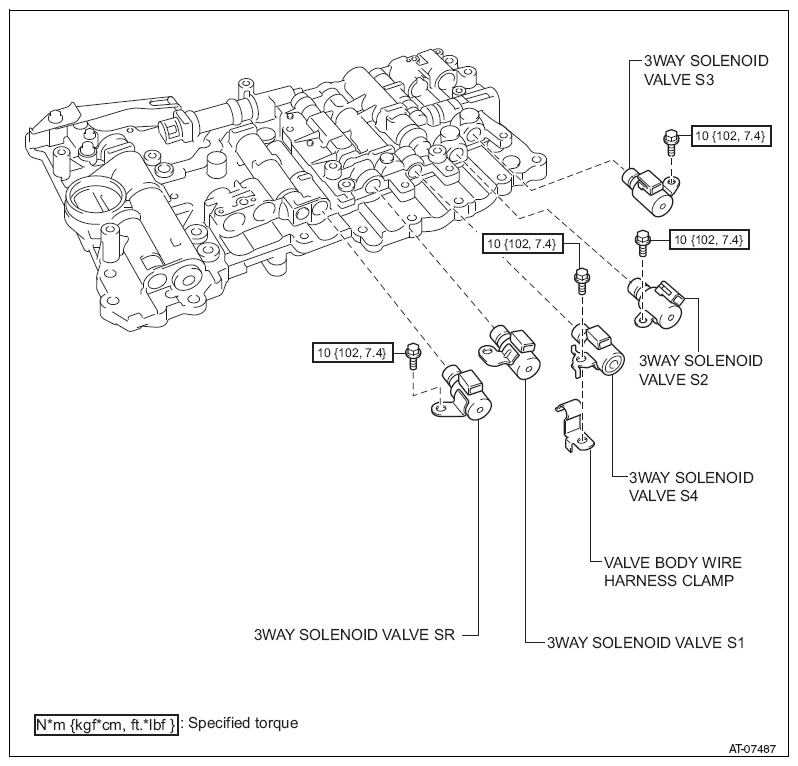

Fig 2: Exploded View Of Transmission Valve Body Assy With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
