Transmission Shift Switch
>>
Exploded View
Exploded View

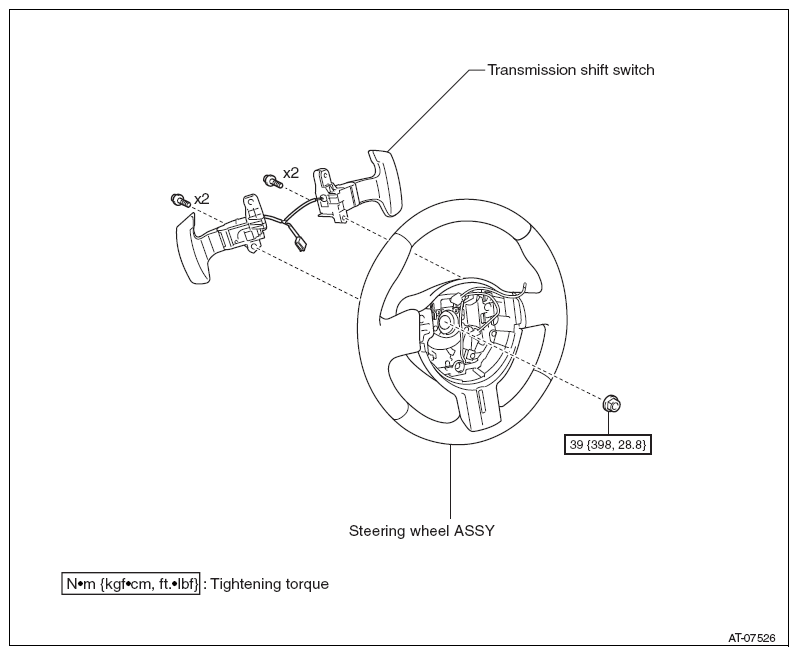

Fig 1: Exploded View Of Transmission Shift Switch With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
