Circuit Figure

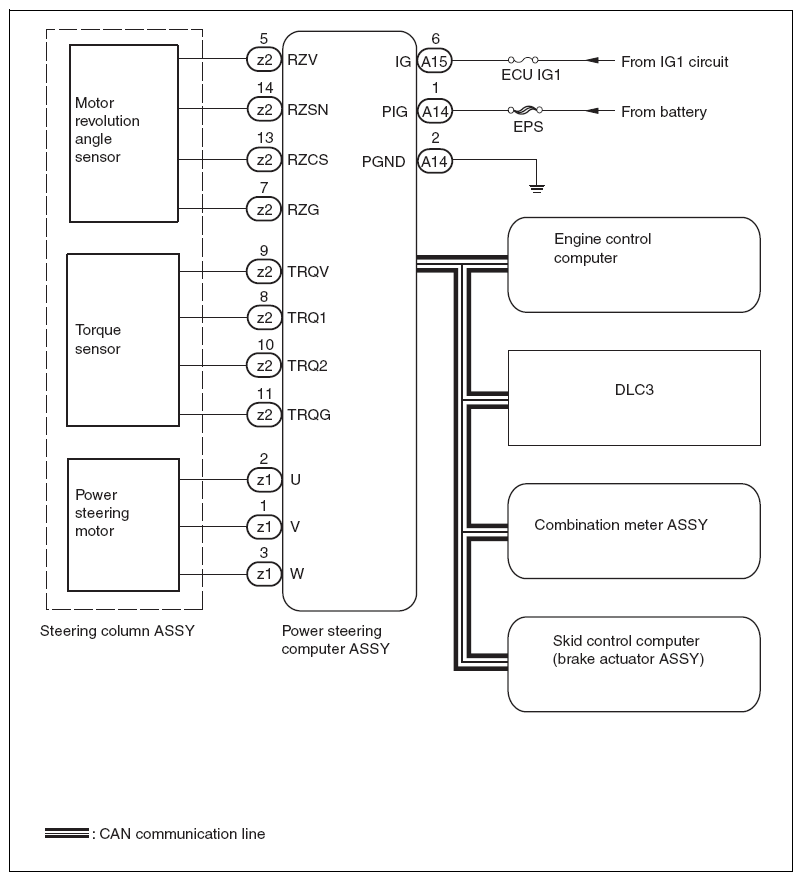

Fig 1: Steering Column Assembly/Power Steering Computer Assembly - Circuit Diagram

G08557183

Courtesy of SUBARU OF AMERICA, INC.
