Circuit Figure

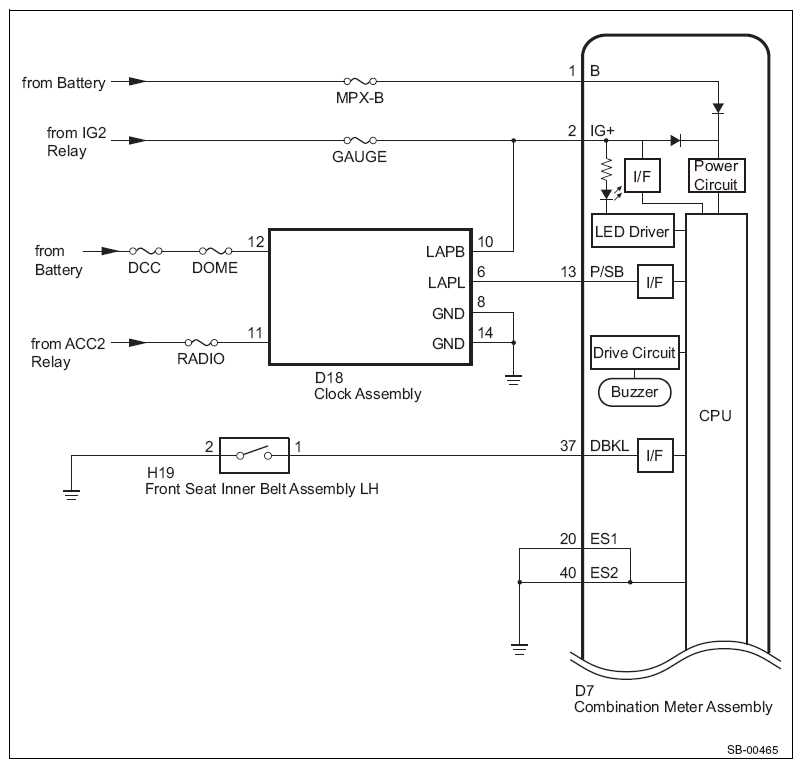

Fig 1: Seat Belt Warning System - Circuit Diagram (1 Of 2)
G08557818Courtesy of SUBARU OF AMERICA, INC.

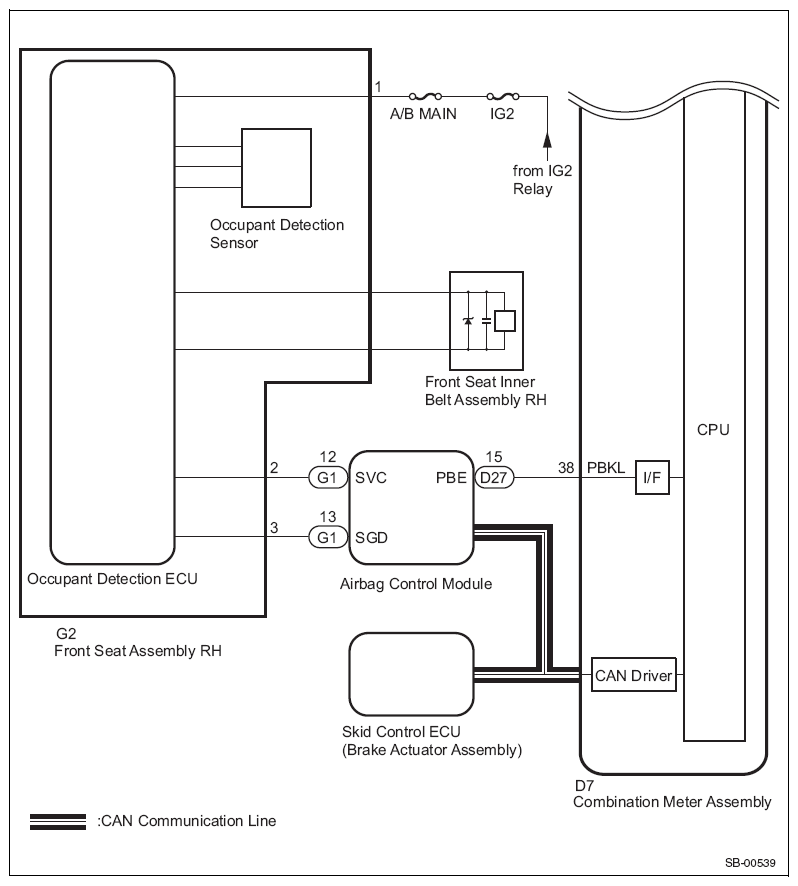

Fig 2: Seat Belt Warning System - Circuit Diagram (2 Of 2)
G08557819Courtesy of SUBARU OF AMERICA, INC.
COMMUNICATION TABLE

Sender Receiver Signal Communication Method
Airbag control module Combination meter assembly Occupant detection CAN
Skid control ECM Combination meter assembly Vehicle speed
