Front Seat Inner Belt Assembly: Removal

Precautions for handling the device
NOTE: The following procedure is for LH side. Unless otherwise specified, perform the same procedures for the RH side.
Removal of the front seat assembly LH (Refer to REMOVAL )
Removal of the front seat cushion shield INN LH (driver's side) (Refer to DISASSEMBLY )
Removal of the front seat inner belt assembly LH (driver's side)
1. Remove the rubber band of the separate type front seat backrest cover LH.

  Fig 1: Identifying Rubber Band Of Separate Type Front Seat Backrest Cover LH
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the claw and 3 clamps, and disconnect the wiring harness of the front seat inner belt assembly LH.

  Fig 2: Identifying Claw, Clamps And Wiring Harness Of Front Seat Inner Belt assembly LH
  Courtesy of SUBARU OF AMERICA, INC.
3. Release the 2 clamps and disconnect the wiring harness of the front seat inner belt assembly RH.
4. Remove the nut and the washer, and remove the front seat inner belt assembly RH.

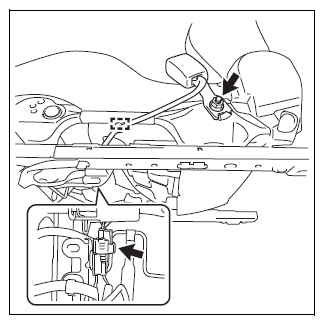

  Fig 3: Locating Nut And Washer Of Front Seat Inner Belt assembly RH
  Courtesy of SUBARU OF AMERICA, INC.
Removal of the front seat inner belt assembly RH (passenger's side)
1. Release the clamp.
2. Remove the nut and the washer, and remove the front seat inner belt assembly RH.

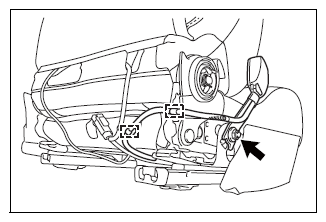

  Fig 4: Identifying Clamp And Front Seat Inner Belt assembly RH
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 5: Identifying Nut, Washer And Front Seat Inner Belt assembly RH
  Courtesy of SUBARU OF AMERICA, INC.
