Unit Inspection

  1. Throttle body assembly (with motor) check
    1. Measure the resistance between the terminals.
      RESISTANCE

      Inspection terminals Inspection conditions Standard value
      1 - 2 20°C {68°F} 0.3 to 10Ω

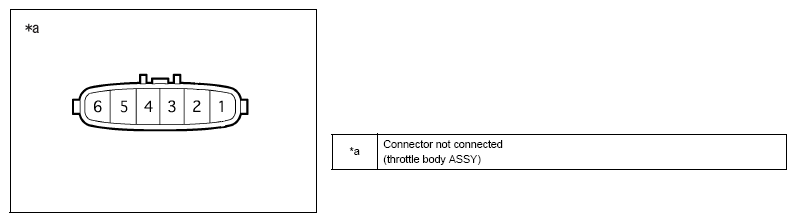

      Fig 1: Identifying Throttle Body Assembly Connector Terminals
      G08553995Courtesy of SUBARU OF AMERICA, INC.
