Camshaft Position Sensor (FA20)
>>
Exploded View
Exploded View

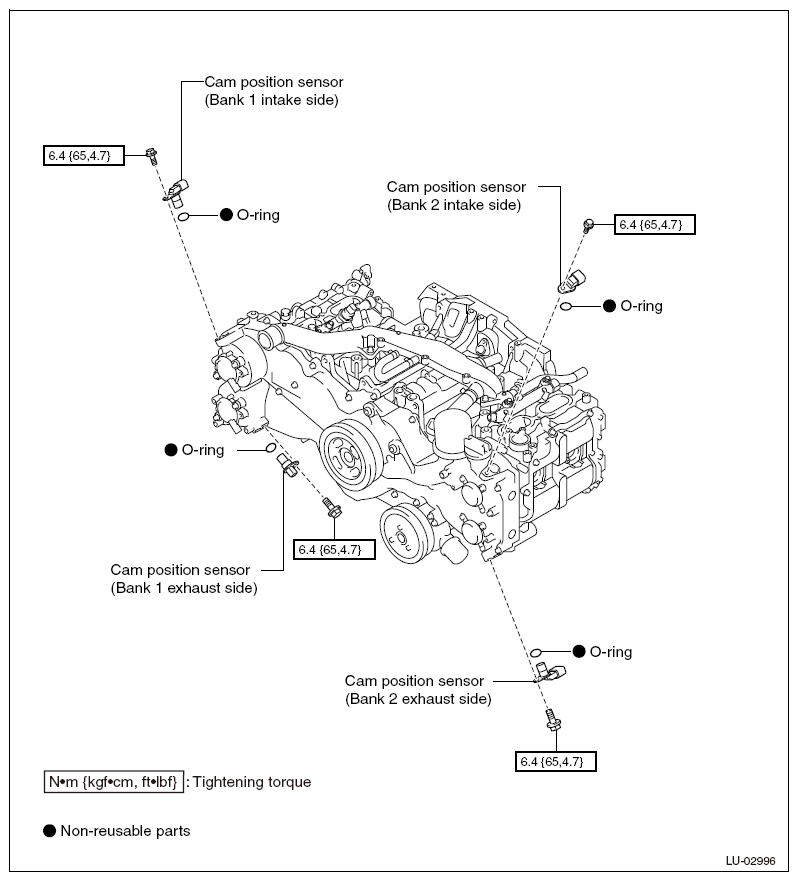

Fig 1: Camshaft Position Sensor With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Camshaft Position Sensor With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
