Select Cable: Removal

Shift the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the center exhaust pipe. < Refer to REMOVAL , Center Exhaust Pipe. >
Remove the center exhaust cover.

Fig 1: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin and washer from the shifter arm.

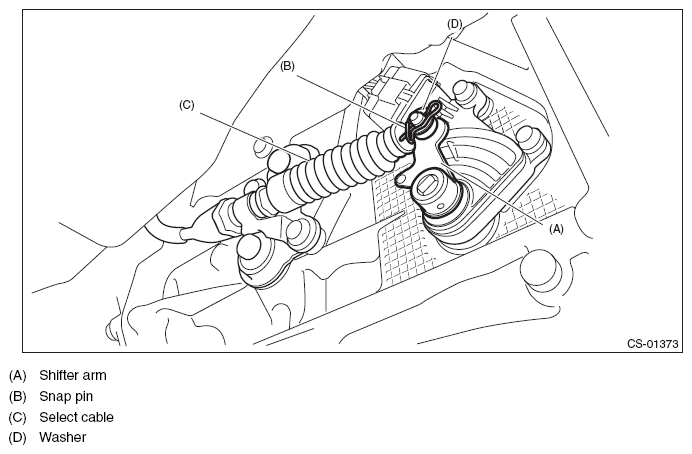

Fig 2: Identifying Shifter Arm, Snap Pin, Select Cable And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from the transmission case.

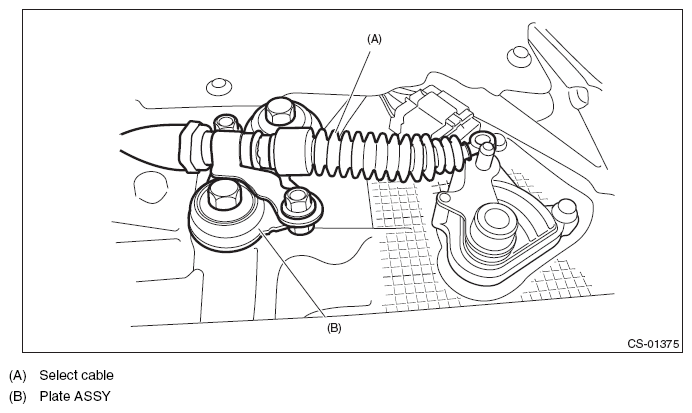

Fig 3: Identifying Select Cable And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from arm COMPL.

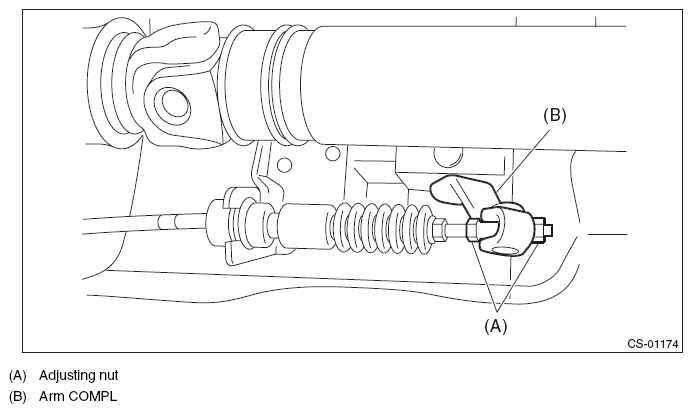

Fig 4: Identifying Adjusting Nut And Arm COMPL
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp to remove the cable from bracket.

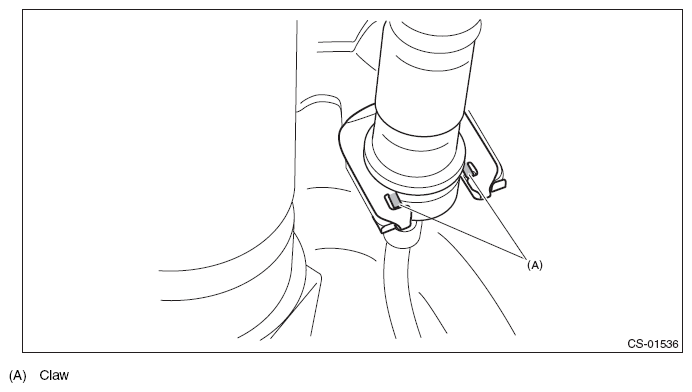

Fig 5: Identifying Cable Clamp Claw
Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from plate assembly.
