Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Transmission Control Systems (Except WRX)
>>
AT Shift Lock Control System
>>
Wiring Diagram
AT Shift Lock Control System: Wiring Diagram

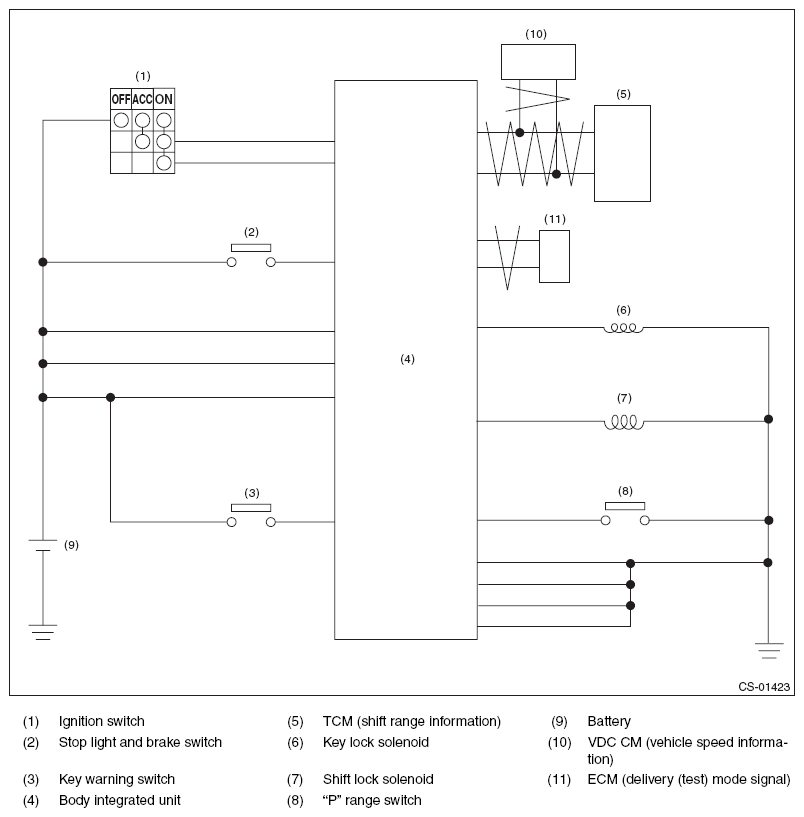

Fig 1: AT Shift Lock Control System - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
