Fuel Filler Pipe

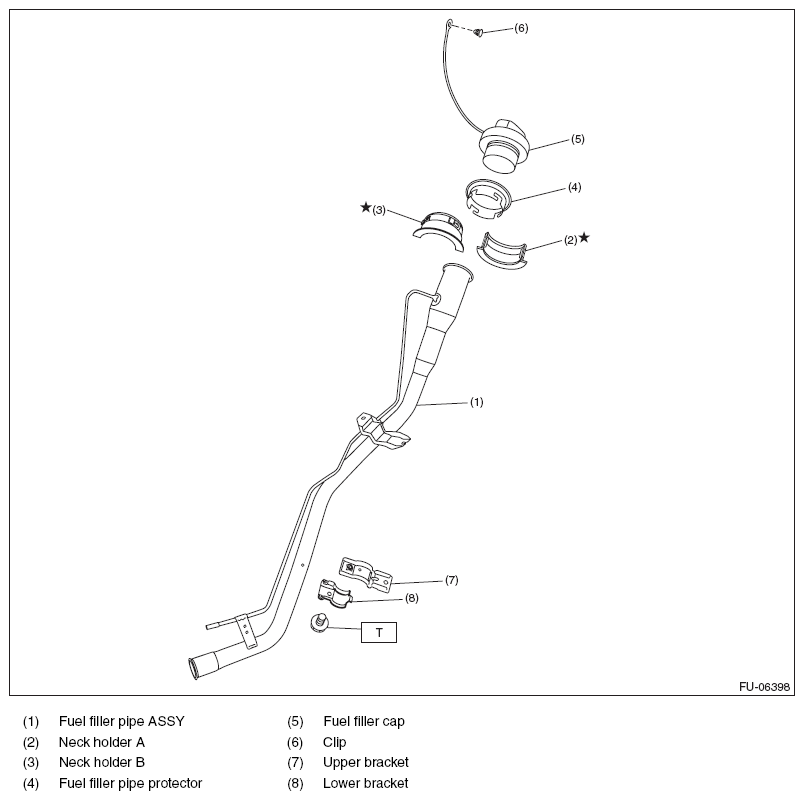

Fig 1: Fuel Filler Pipe Replacement Components With Torque Specifications
G08547307Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.35 (0.7, 5.4)
