DTC P2127 Throttle/Pedal Position Sensor/Switch "E" Circuit Low Input: Wiring Diagram

Engine electrical system Refer to Engine Electrical System Wiring Diagram.

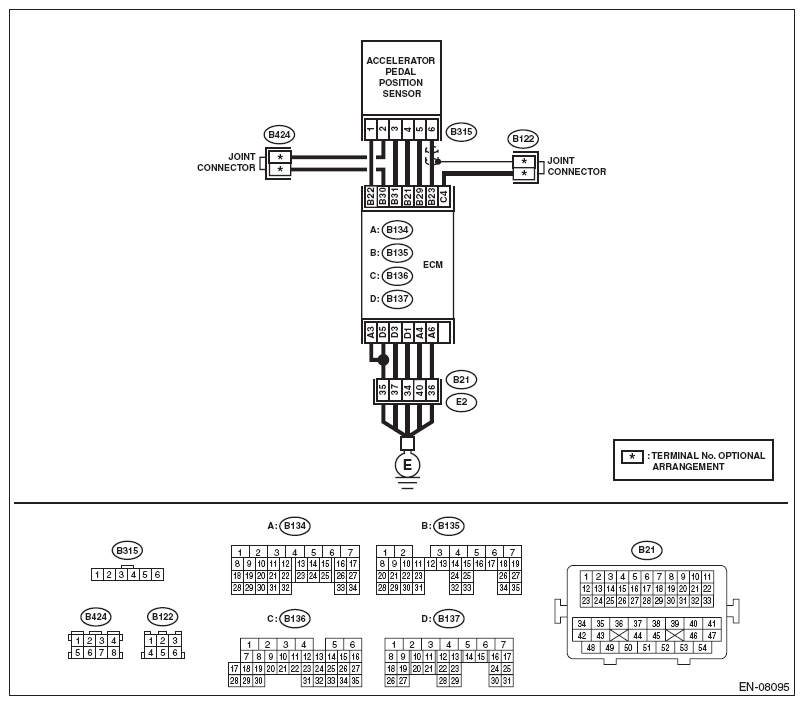

Fig 1: Throttle/Pedal Position Sensor/Switch E - Wiring Diagram
G07925269Courtesy of SUBARU OF AMERICA, INC.
