DTC P0102 Mass Or Volume Air Flow Circuit Low Input: Wiring Diagram

Engine electrical system Refer to Engine Electrical System Wiring Diagram.

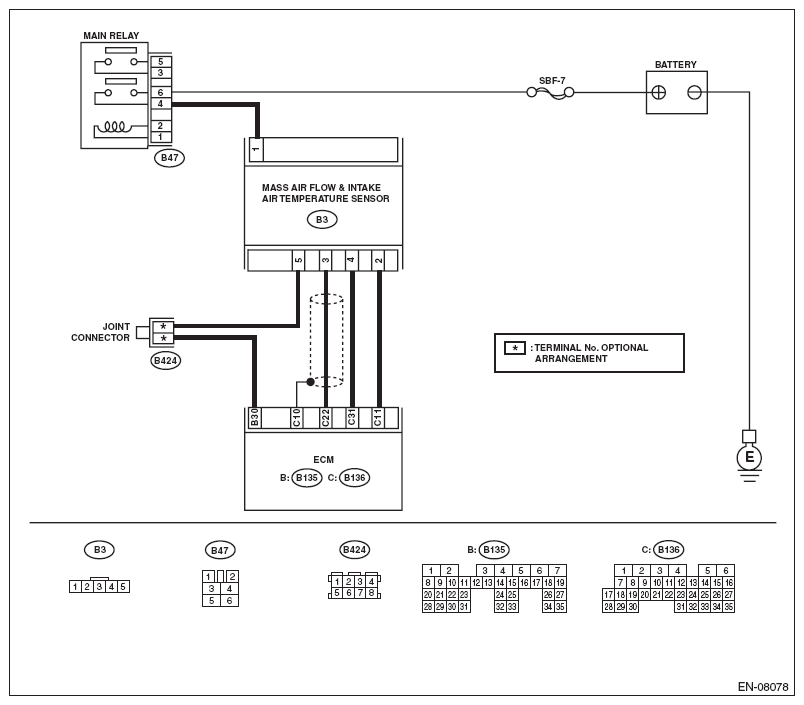

Fig 1: Mass Or Volume Air Flow Sensor - Wiring Diagram
G07925184Courtesy of SUBARU OF AMERICA, INC.
