< Full Count Diagnosis >
Reset the counter in soaking timer IC and start the count up operation.
Judge as full count diagnosis malfunction if counter in soaking timer IC is not $3FF (1023 count) after 4 seconds.

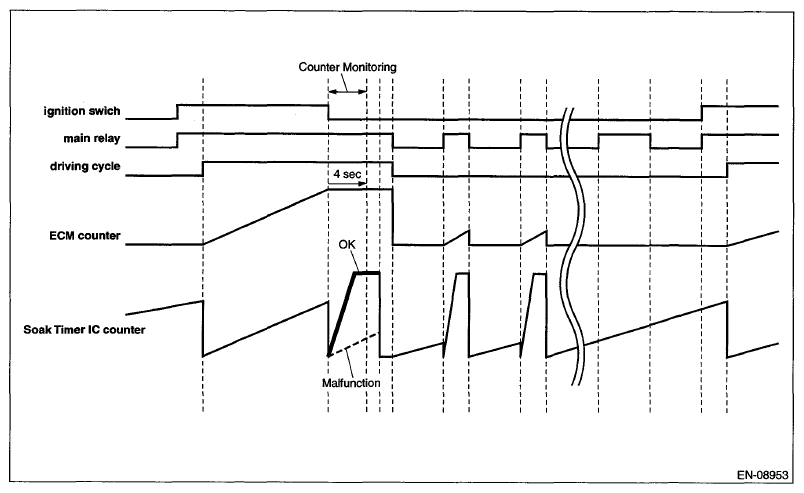

Fig 1: Ignition Switch, Main Relay, Driving Cycle, ECM Counter And Soak Timer IC Counter Timing Pattern (Full Count Diagnosis)
- Abnormality Judgment
Judge as NG when the following conditions are established.
JUDGMENT VALUE
| Malfunction Criteria | Threshold Value |
|---|---|
| osoakfcntic osoakfcntic = Counter in soaking timer IC |
$3FF (1023 count) |
- Normality Judgment
Judge as OK when the following conditions are established.
JUDGMENT VALUE
| Malfunction Criteria | Threshold Value |
|---|---|
| osoakfcntic | = $3FF (1023 count) |
