Details Of Judgment Time

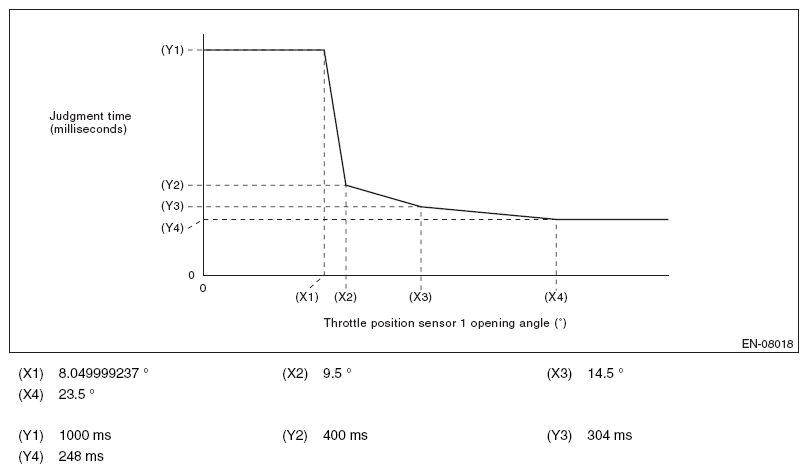

Fig 1: Throttle Position Sensor 1 Judgment Time Versus Opening Angle Graph

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Judgment time when actual opening angle ≤ target opening angle is always 1000 milliseconds.

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
