Diagnostic Trouble Code Detecting Criteria
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0340 Camshaft Position Sensor "A" Circuit (Bank 1 Or Single Sensor)
>>
Component Description
Component Description

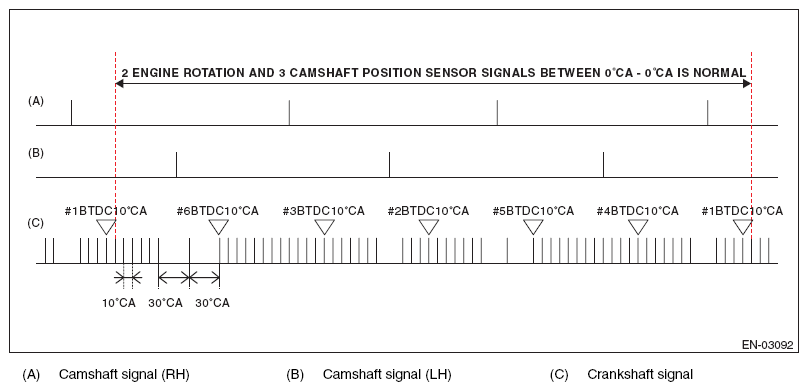

Fig 1: Identifying Crankshaft Signal And Camshaft Signal (RH And LH)
Courtesy of SUBARU OF AMERICA, INC.

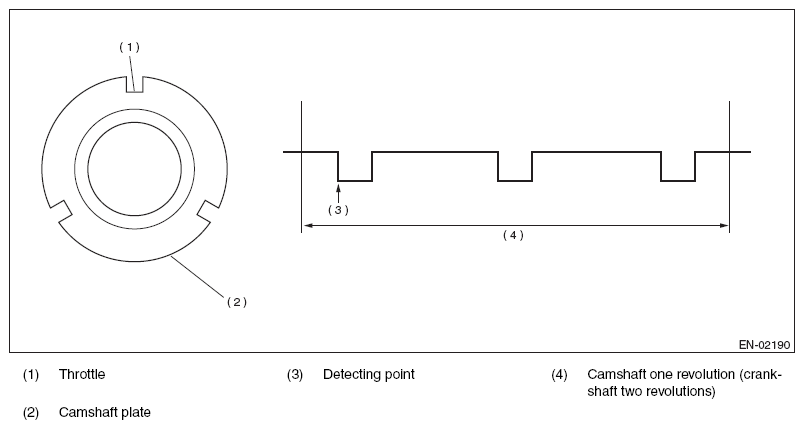

Fig 2: Identifying Camshaft Plate, Throttle, Detecting Point And Camshaft One Revolution
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
