Warning Box: Removal

  1. Disconnect the ground cable from the battery.
  2. Remove the upper grille. < Refer to UPPER GRILLE , REMOVAL, Air Vent Grille. >
  3. Remove the screws of warning box (1) and pull out the warning box.

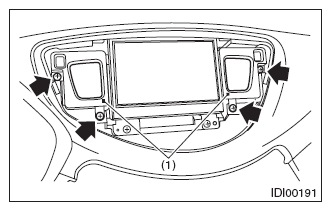

    Fig 1: Identifying Warning Box Mounting Screws
    G08546577Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector in the rear side of warning box to remove the warning box.
