Sunroof Switch: Inspection

Remove the overhead console. (Models without EyeSight)
Remove the stereo camera cover. (Models with EyeSight) < Refer to REMOVAL , Stereo Camera. >

Check the resistance between sunroof switch terminals.

Preparation tool: Circuit tester

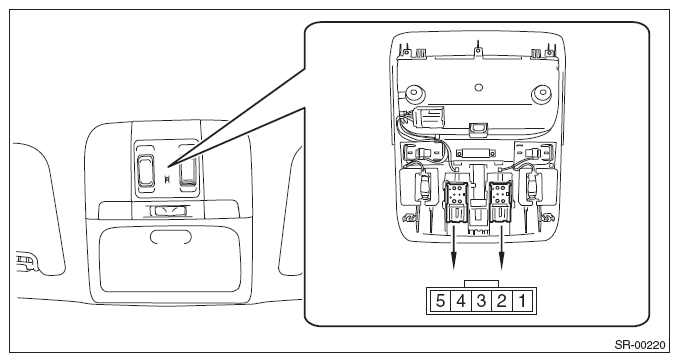

Fig 1: Identifying Sunroof Switch Terminals

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Standard	Connector No.
1 - 3	Open	Less than 1 Ω	R128
4 - 3	Close	Less than 1 Ω	R128
1 - 3	Tilt down	Less than 1 Ω	R187
4 - 3	Tilt up	Less than 1 Ω	R187

Replace the sunroof switch if the inspection result is not within the standard value.
