Forced Drive
If the glass lid does not operate or the sunroof motor is not supplied with power, move the glass lid using the hexagon wrench.
Width across flat 5 mm (0.20 in)
CAUTION:
After a forced operation, make sure to perform an initialize operation. < Refer to
INITIALIZE OPERATION , OPERATION, Sunroof Control System. >
- Remove the spot map light. (Models without EyeSight) < Refer to REMOVAL , Spot Map Light. >
- Remove the stereo camera cover. (Models with EyeSight) < Refer to REMOVAL , Stereo Camera. >

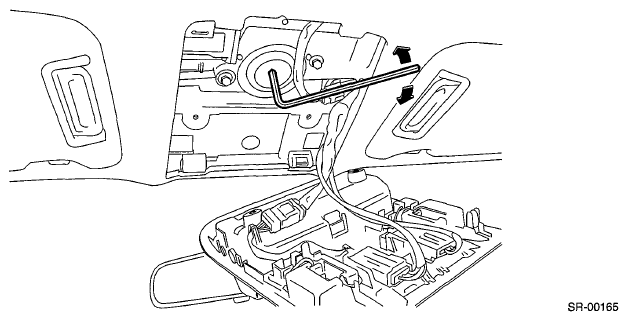

- Insert the hexagon wrench securely until it touches the motor shaft end.
- Turn the hexagon wrench, and move the glass lid.
- Turning right, the glass lid open.
- Turning left, the glass lid close.
CAUTION: Be careful not to damage the adjacent parts with the rod end when moving the glass lid with the hexagon wrench.
