Component Description

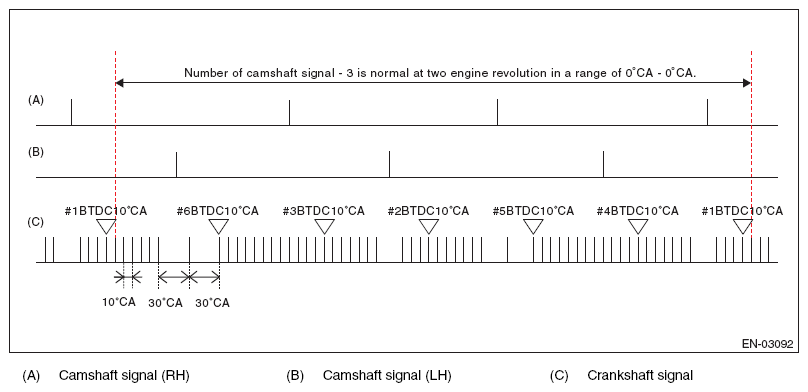

Fig 1: Identifying Camshaft Signal (RH And LH), Crankshaft Signal
G08581780Courtesy of SUBARU OF AMERICA, INC.

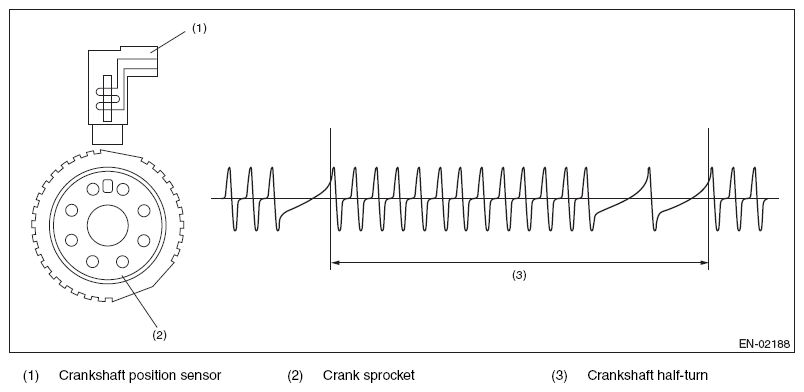

Fig 2: Identifying Crankshaft Position Sensor, Crank Sprocket And Crankshaft Half Turn
G08581781Courtesy of SUBARU OF AMERICA, INC.
