System Block Diagram

Main signals used between stereo camera and relevant CM

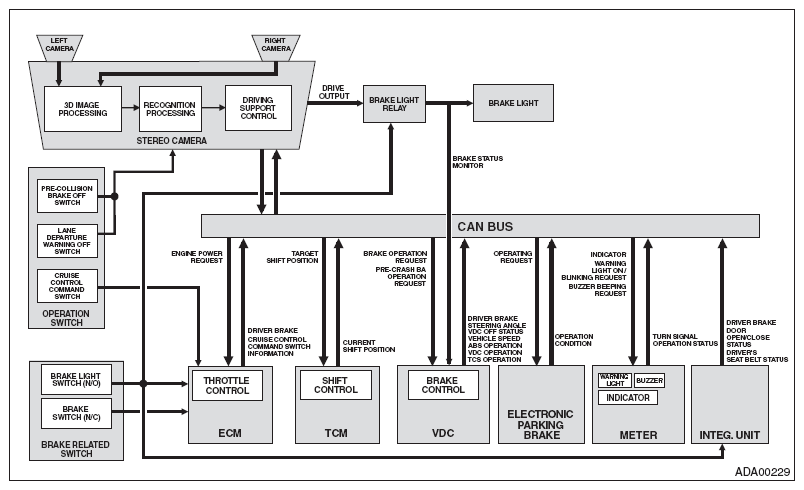

Fig 1: Stereo Camera And Relevant CM System Block Diagram

G08585586

Courtesy of SUBARU OF AMERICA, INC.
