Differential Side Retainer Oil Seal: Replacement

Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the under cover. Refer to REMOVAL .
Remove the front exhaust pipe. Refer to REMOVAL .
Drain the differential gear oil by removing drain plug using TORX® bit T70.
CAUTION:
- Immediately after the vehicle has been running or after idling for a long time, the differential gear oil will be hot. Be careful not to burn yourself.
- Be careful not to spill the differential gear oil on exhaust pipe to prevent it from emitting smoke or fire. If differential gear oil is spilled on the exhaust pipe, wipe it off completely.

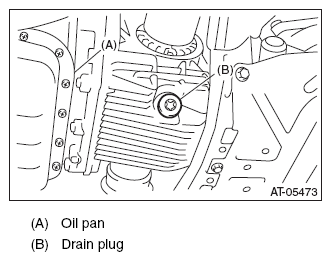

  Fig 1: Identifying Oil Pan And Drain Plug
  Courtesy of SUBARU OF AMERICA, INC.
Tighten the drain plug.
NOTE: Use a new gasket.

Tightening torque:

70 N.m (7.1 kgf-m, 51.6 ft-lb)
Separate the front drive shaft from the transmission. Refer to REMOVAL .
Remove the differential side retainer oil seal using driver wrapped with vinyl tape etc.
Using the ST, install the differential side retainer oil seal by lightly tapping with a plastic hammer.
NOTE:
- Use a new oil seal.
- Apply differential gear oil to the oil seal lip.
- Check the identification marks (L, R) during installation not to mix up the oil seal RH and LH.
ST 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER

Fig 2: Installing Oil Seal Using ST
Courtesy of SUBARU OF AMERICA, INC.
Install the front drive shaft. Refer to INSTALLATION .
Install the front exhaust pipe. Refer to INSTALLATION .
Install the under cover. Refer to INSTALLATION .
Lower the vehicle.
Connect the battery ground terminal.
Pour differential gear oil into the level gauge hole. Refer to DIFFERENTIAL GEAR OIL .
Check the level of differential gear oil. Refer to INSPECTION .
